SMS OTP

SMS OTP is a two-factor authentication method that delivers one-time passwords to users via SMS. It offers broad accessibility and easy user adoption.

What is SMS OTP?​

SMS OTP profiles allow users to receive a 6-digit one-time password via SMS as a second-factor authentication method. It is a universal solution for any user with phone access.

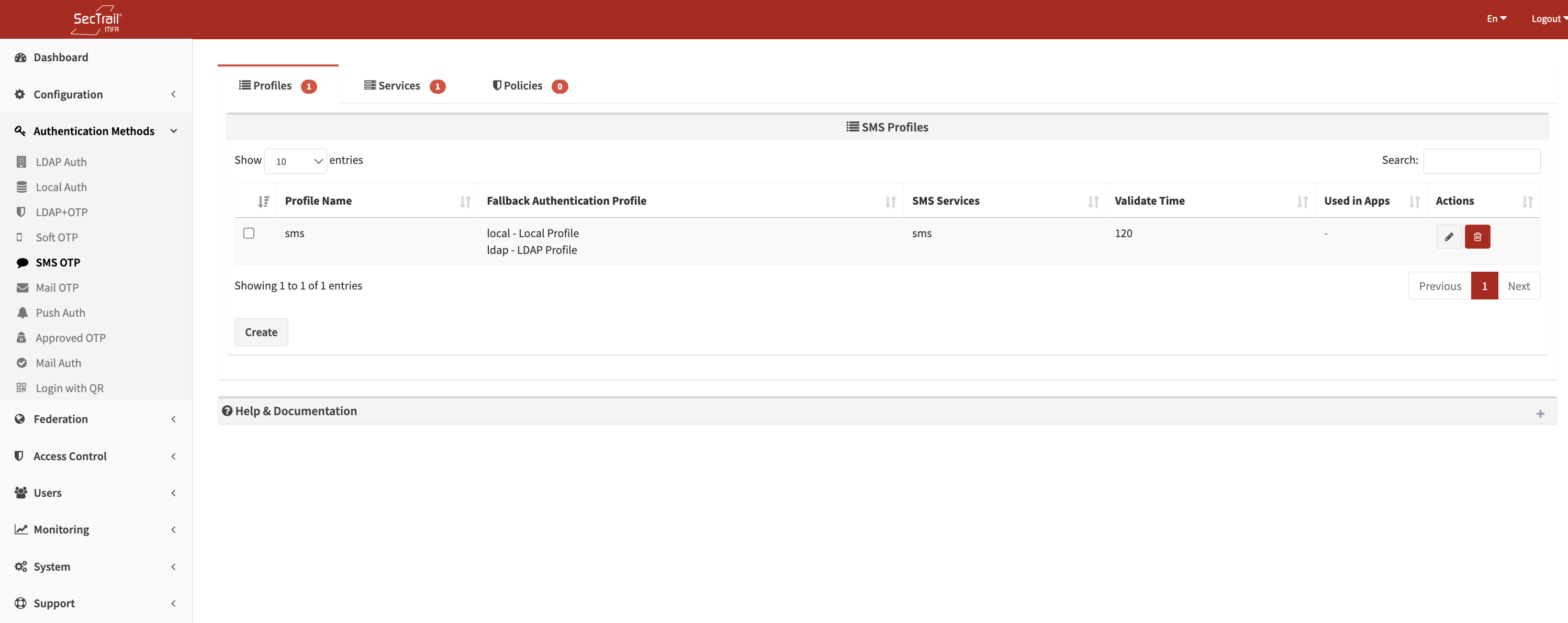

SP Manuel Giriş Formu

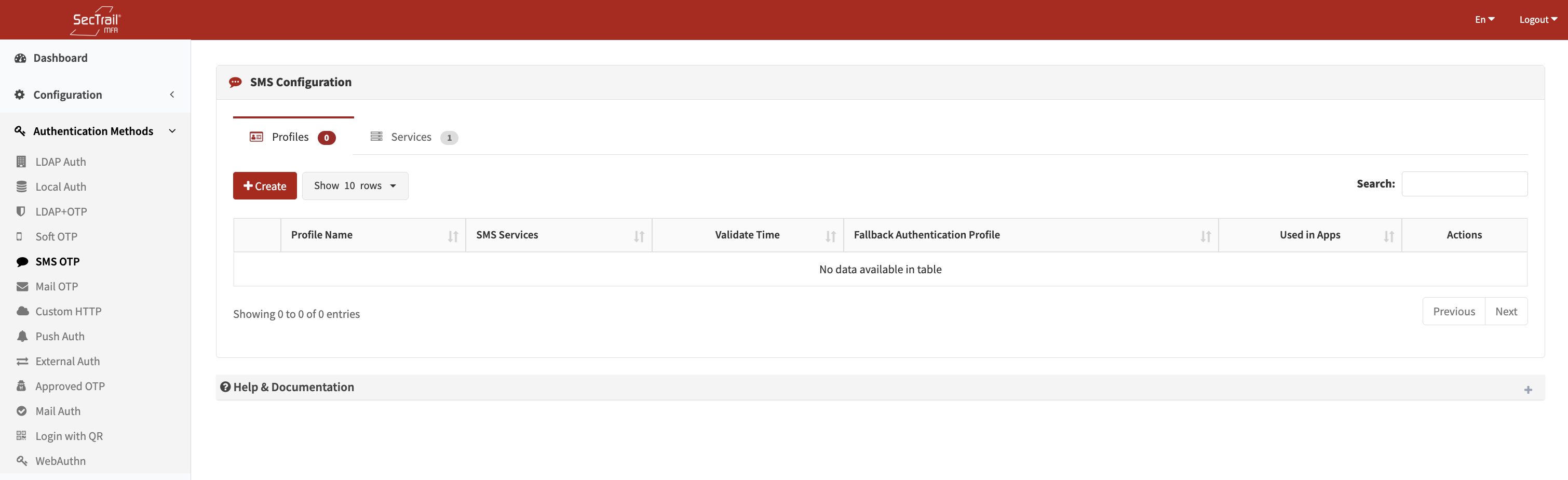

Sms OTP Authentication Method

Configuration Components​

SMS OTP configuration is built on 3 main components:

1. SMS Services​

External SMS provider configurations used to deliver SMS messages.

Configuration Fields:

  • SMS Script Name: A descriptive name for the service
  • URL: API endpoint of the SMS provider
  • Request Method: HTTP method (GET, POST, Custom)
  • Success Detection: Value or pattern in the API response indicating successful delivery
  • Authentication: API key or token details
  • Parameters: Phone number, message content, and additional parameters

Supported Methods:

  • HTTP GET/POST requests
  • Custom script files
  • Multiple SMS provider support
  • International phone number formats

2. SMS Profiles​

Defines how OTP messages will be sent to users.

Profile Configuration Fields:

  • Profile Name: A descriptive name for the SMS profile
  • Fallback Auth Profiles: First-factor authentication profiles (LDAP or Local)
    • Used to retrieve the user’s phone number
  • SMS Services: One or more SMS services
    • Multiple providers can be added for failover
  • Validate Time: Validity duration of the OTP code (in minutes)

3. SMS Policies​

Determines which users authenticate with which SMS OTP profile.

Policy Configuration Fields:

  • SMS Profile: SMS OTP profile to be used
  • Authentication Profile: LDAP/Local authentication profile used to retrieve user attributes
    • Must match one of the fallback profiles defined in the SMS profile
    • Retrieves the user’s phone number
  • Attribute: User attribute to evaluate
    • LDAP Attributes: memberOf, department, title, mail, mobile, etc.
    • Local Attributes: username, group_name, email, mobile, etc.
  • Attribute Value: Value(s) to match
    • Dropdown selection or manual input
    • Supports wildcard (*) and regex patterns

User Authentication Flow​

  1. User Login: User logs in with username and password (fallback authentication)
  2. Phone Number Lookup: The system retrieves the phone number from the user's LDAP/Local profile
  3. SMS Delivery: A 6-digit OTP code is sent to the user through the configured SMS service
  4. Code Entry: The user enters the received OTP code
  5. Verification: The system validates the code (within the configured validate time)
  6. Access Control: If the code is correct, access is granted
Phone Number Requirements
  • LDAP Users: Must have a valid phone attribute (commonly mobile or telephoneNumber)
  • Local Users: Must have a mobile number stored in the local user record
  • International number format is recommended: +90xxxxxxxxxx

Policy Behavior​

Important
  • No Policy: All users are routed to the default SMS profile
  • With Policies: Only users matching policy conditions authenticate with the selected profile
  • Priority: Policies are evaluated top to bottom; the first matching policy is applied

Use Cases​

Scenario 1: Universal 2FA​

Ideal for environments where all users have mobile phone access.

Scenario 2: External Users​

Suitable for guest or external users who do not want to install a mobile app.

Scenario 3: Fast Onboarding​

Provides quick onboarding without requiring additional applications.

Setup Steps​

  1. Choose an SMS Provider: Select an SMS API provider (Twilio, Vonage, local providers, etc.)
  2. Create SMS Service: Configure the provider details
  3. Test SMS Delivery: Use the “Test SMS” button to verify the service
  4. Prepare Fallback Profile: Create an LDAP or Local authentication profile
  5. Create SMS Profile: Add the SMS service and fallback profile
  6. Create Policies: Route users to the correct profile through policies
  7. Verify Phone Numbers: Ensure all users have valid phone numbers
  8. Application Integration: Attach the SMS profile to application profiles

Advantages​

  • ✅ Universal Access: Works for any user with a mobile phone
  • ✅ Easy Adoption: No additional application required
  • ✅ Widely Accepted: Users are already familiar with SMS OTP
  • ✅ Multi-Provider Support: Failover capability with multiple SMS services

Important Considerations​

  • SMS delivery incurs cost depending on the provider
  • Delivery times may vary (typically 1–30 seconds)
  • Phone numbers must be accurate and well-formatted
  • Additional methods should be offered against SMS interception attacks
  • Validate time should not be too long (recommended: 5–10 minutes)

Technical Details​

  • OTP Length: 6-digit numeric code
  • Default Validity: 5 minutes (configurable)
  • Encoding: UTF-8 support (including Turkish characters)
  • Rate Limiting: Automatic throttling to prevent SMS spam
  • Retry Mechanism: Failover using multiple SMS providers
