F5 BIG-IP

SecTrail CM enables automatic deployment and renewal of SSL certificates by establishing agentless connections to F5 BIG-IP devices.

Connection Requirements

Requirement	Detail	Description
Protocol	iControl REST API (HTTPS)	F5 BIG-IP's native REST API is used
Port	443	Standard HTTPS port
Authentication	Basic Authentication	Authentication via Username and Password
User Permission	tmsh + Administrator	Certificate upload and configuration permission

Automated Operations

SecTrail CM automatically performs the following operations on F5 BIG-IP:

1. Certificate and Key Upload: Secure transfer of SSL certificate and private key
2. Virtual Server Update: Configuring relevant virtual servers to use the new certificate
3. Configuration Sync: Automatic synchronization to peer devices in HA environments

Configuration Steps

1. Creating F5 BIG-IP User

Navigate to Automation > Device Users and create a user for F5.

User Permissions

Ensure the user has tmsh (Traffic Management Shell) permissions.

2. Adding F5 Device to SecTrail CM

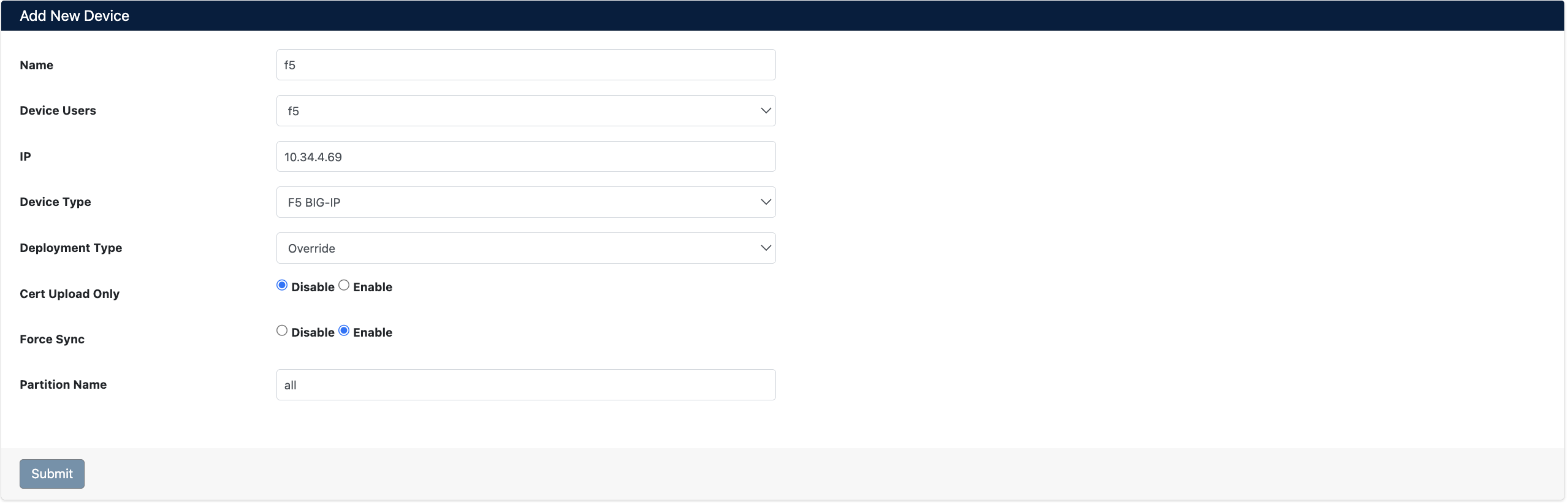

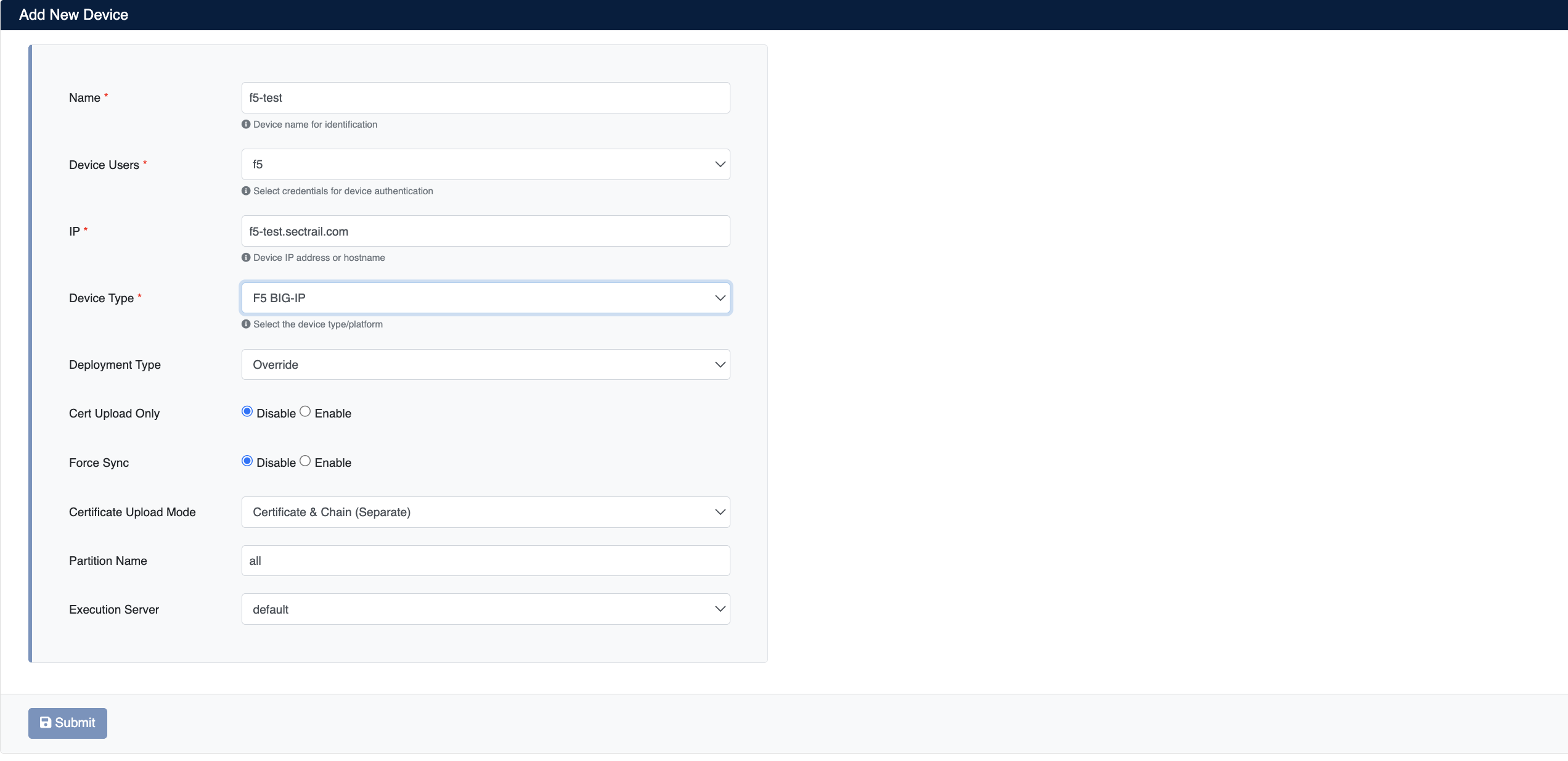

Click Automation > Devices > Add New Device button and enter the following information:

• Name: Provide a descriptive name for the device
• Device Users: Select the user created in Step 1
• IP: Enter the IP address of the F5 BIG-IP device
• Device Type: Select F5 BIG-IP from the dropdown menu
• Deployment Type: Select Parent-Based, Override, or Clone Based mode
• Cert Upload Only: Should only certificate be uploaded? (Disabled/Enabled)
• Force Sync: Should automatic synchronization to standby device be active? (Disabled/Enabled)
• Partition Name: Can be left as all by default

Deployment Type Options

• Parent-Based: SecTrail CM creates a new Client SSL Profile using the existing profile as parent and automatically updates the Virtual Server
• Override: Directly modifies the existing SSL Profile
• Clone Based: SecTrail CM creates an exact copy (clone) of the existing Client SSL Profile and updates only the certificate on the cloned profile

Force Sync

In HA (High Availability) environments, you can enable Force Sync to ensure automatic synchronization to the standby device.

Automatic Discovery

After the F5 device is added to SecTrail CM, the IP addresses and ports of all Virtual Servers defined on the device are automatically included in the discovery period and scanned regularly.

3. Viewing Device Information

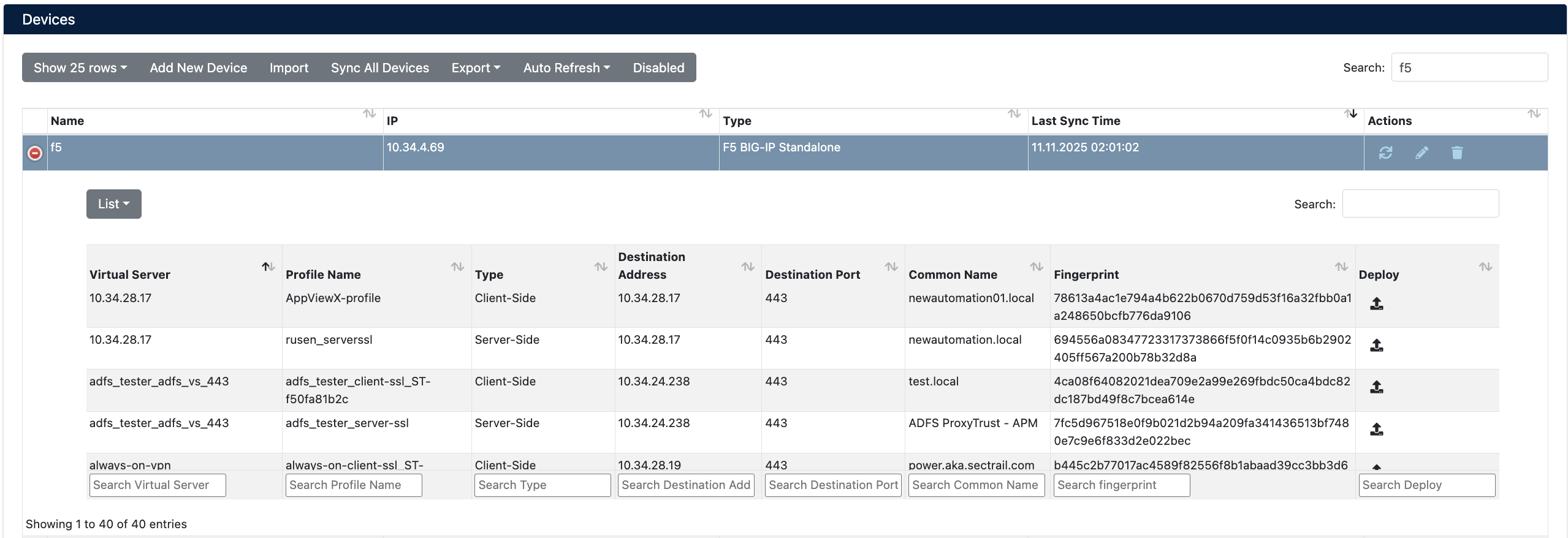

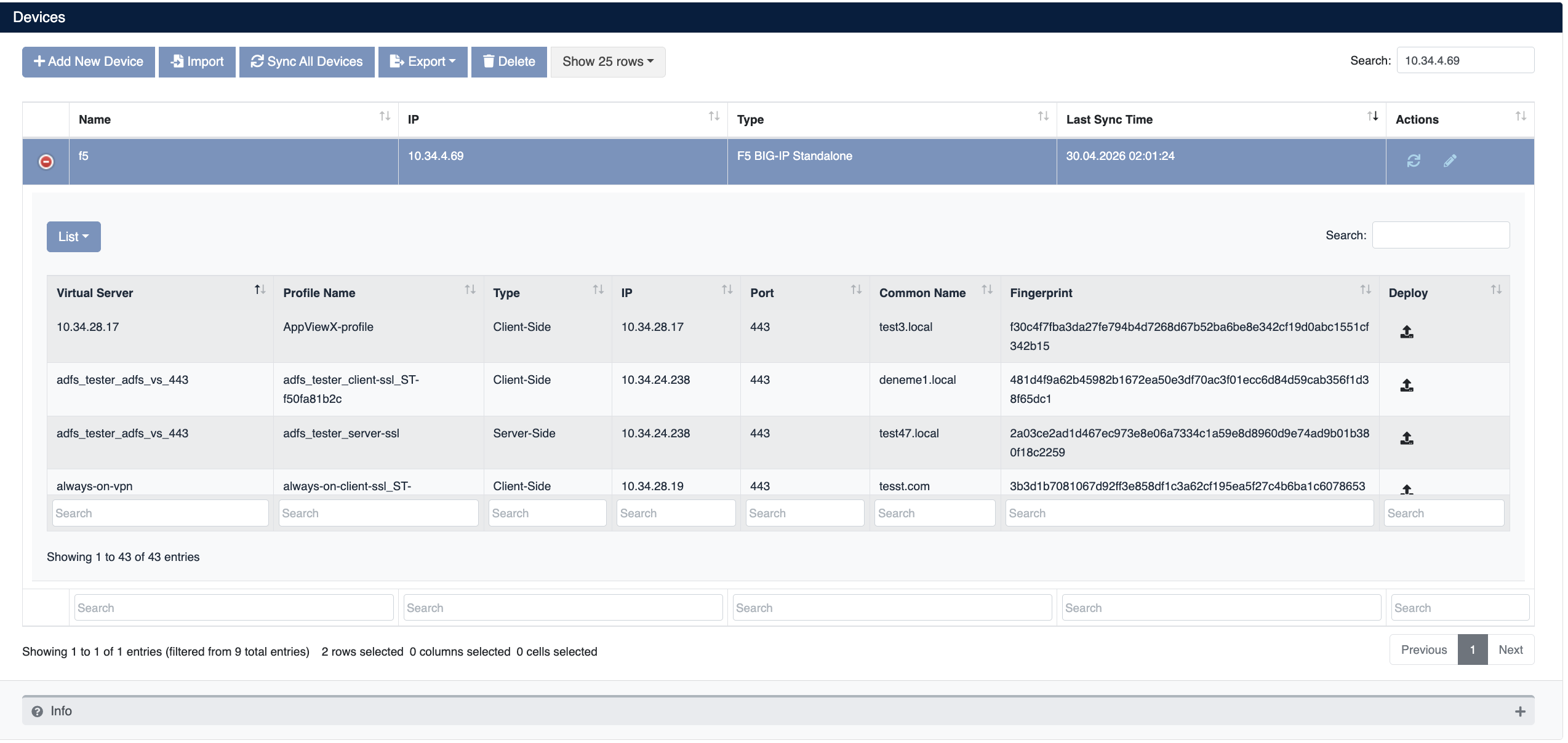

After the device is added, it will be displayed in the Automation > Devices list. Click on the row to view device details:

• Virtual Server: Virtual Server names defined on the F5 device
• Profile Name: SSL profile names
• Type: Client-Side or Server-Side SSL profile type
• Destination Address and Port: IP and port that the Virtual Server listens on
• Common Name: Common Name value of the current certificate
• Fingerprint: Certificate fingerprint
• Deploy: For certificate deployment

Certificate Deployment

Step 1: Virtual Server and Certificate Selection

1. Select your F5 device from Automation > Devices
2. In the device details, find the Virtual Server where you want to deploy the certificate
3. Click the Deploy button on the relevant row

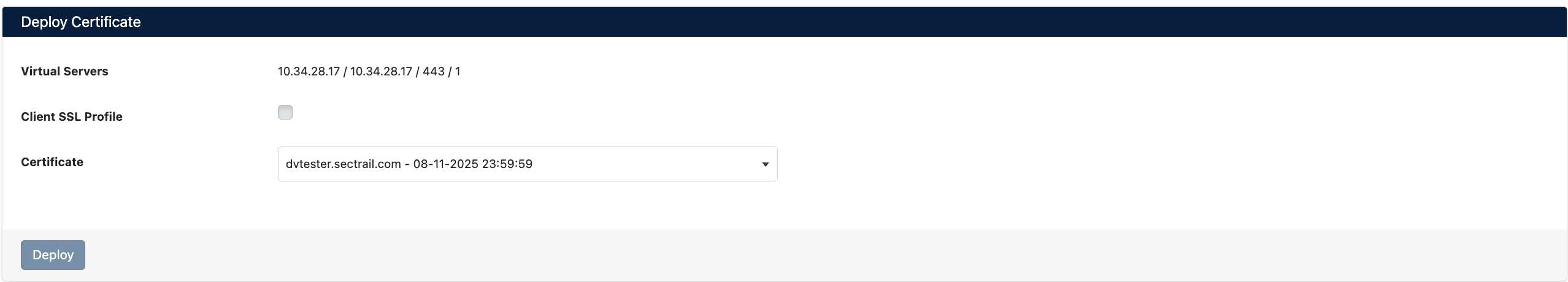

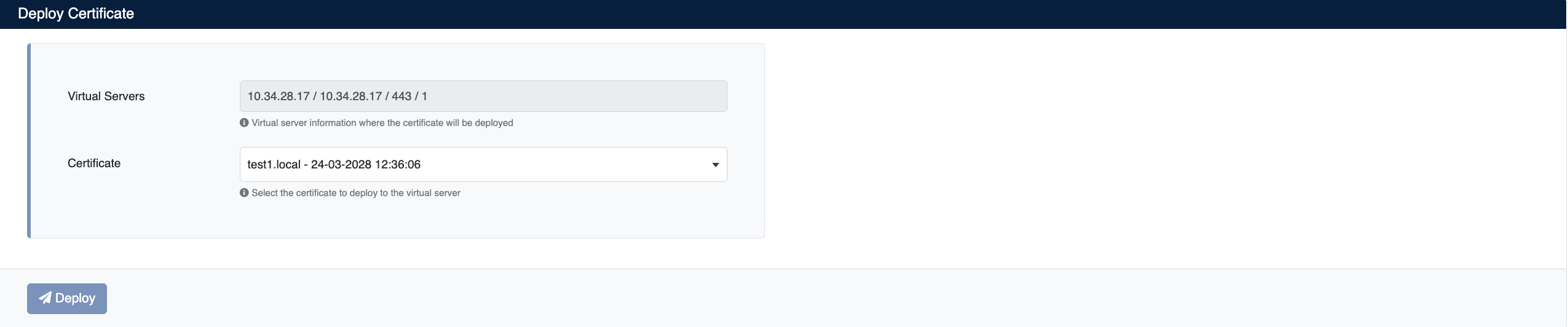

4. In the Deploy Certificate window that opens:
   • Virtual Servers: Target Virtual Server information is displayed
   • Certificate: Select the certificate you want to deploy from the dropdown menu

Step 2: Starting the Deployment Process

Click the Deploy button to start the certificate deployment process.

Step 3: Process Tracking

The deployment process can be tracked from Automation > Processes:

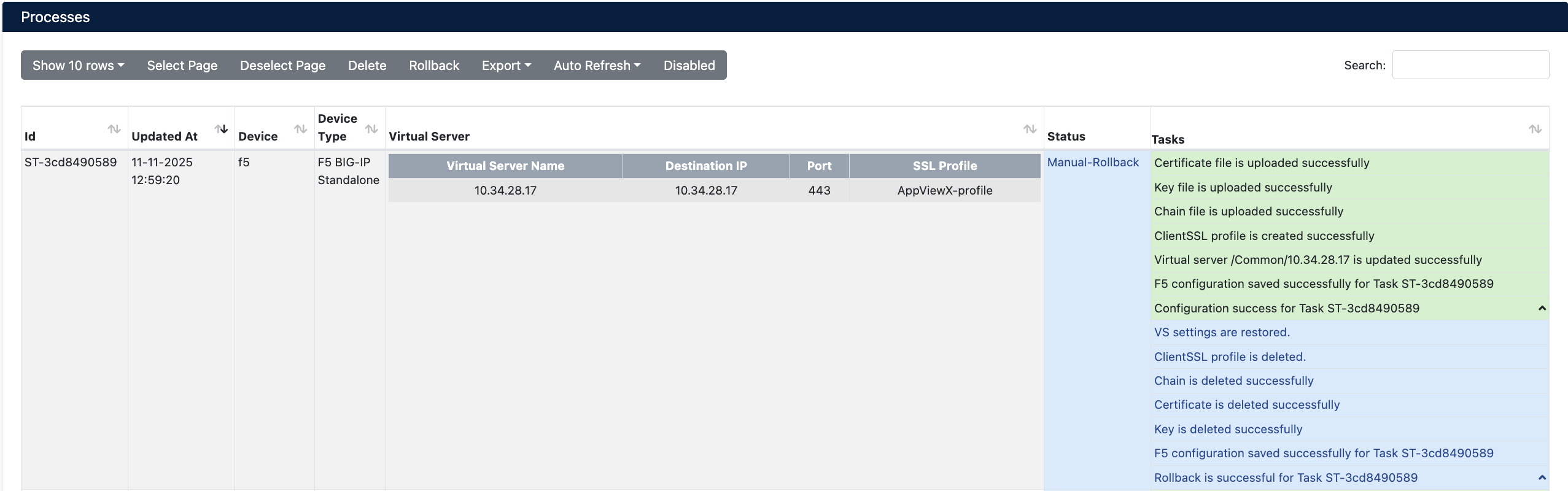

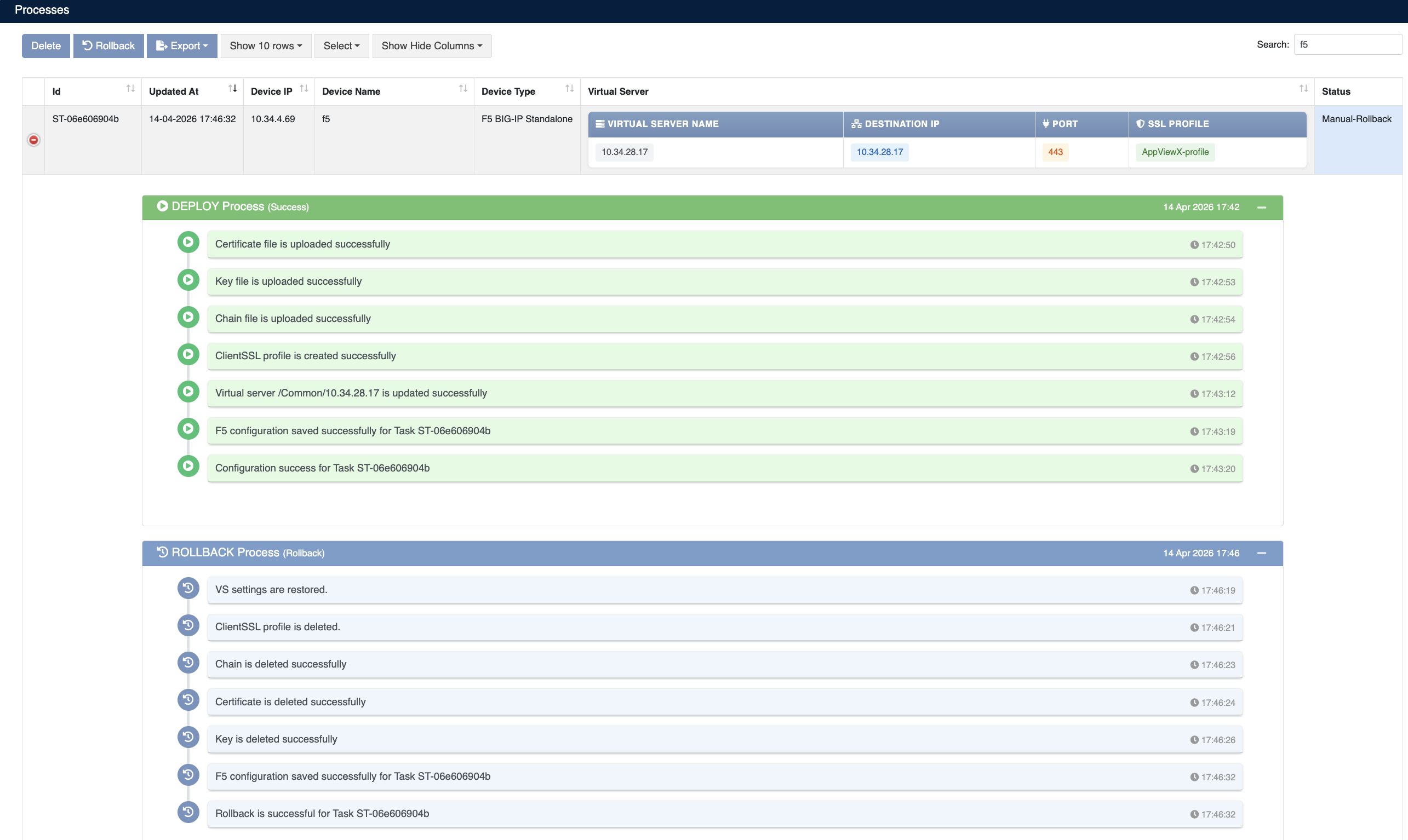

Parent-Based Mode:

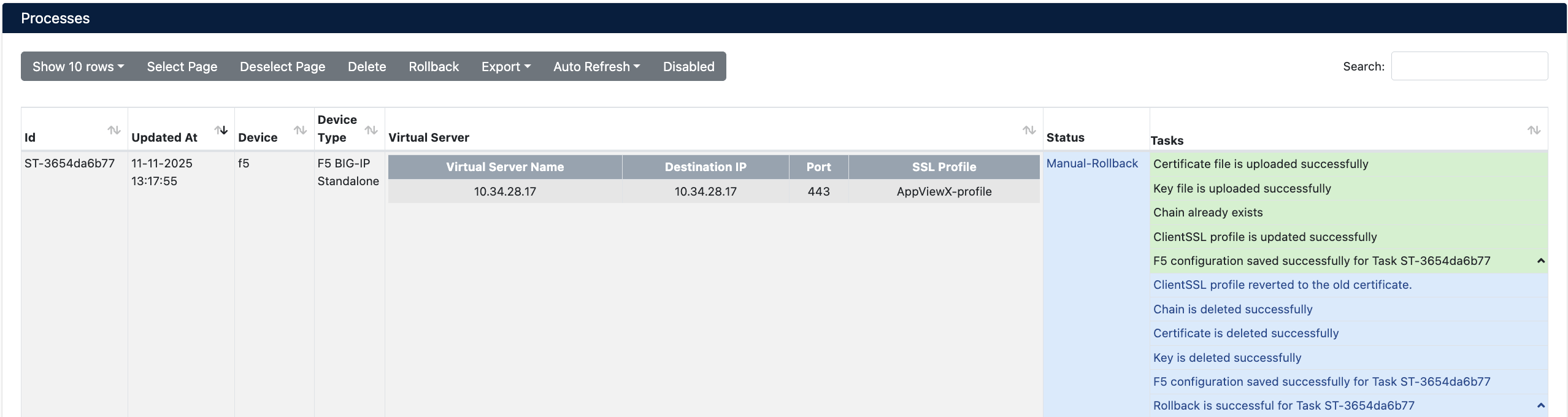

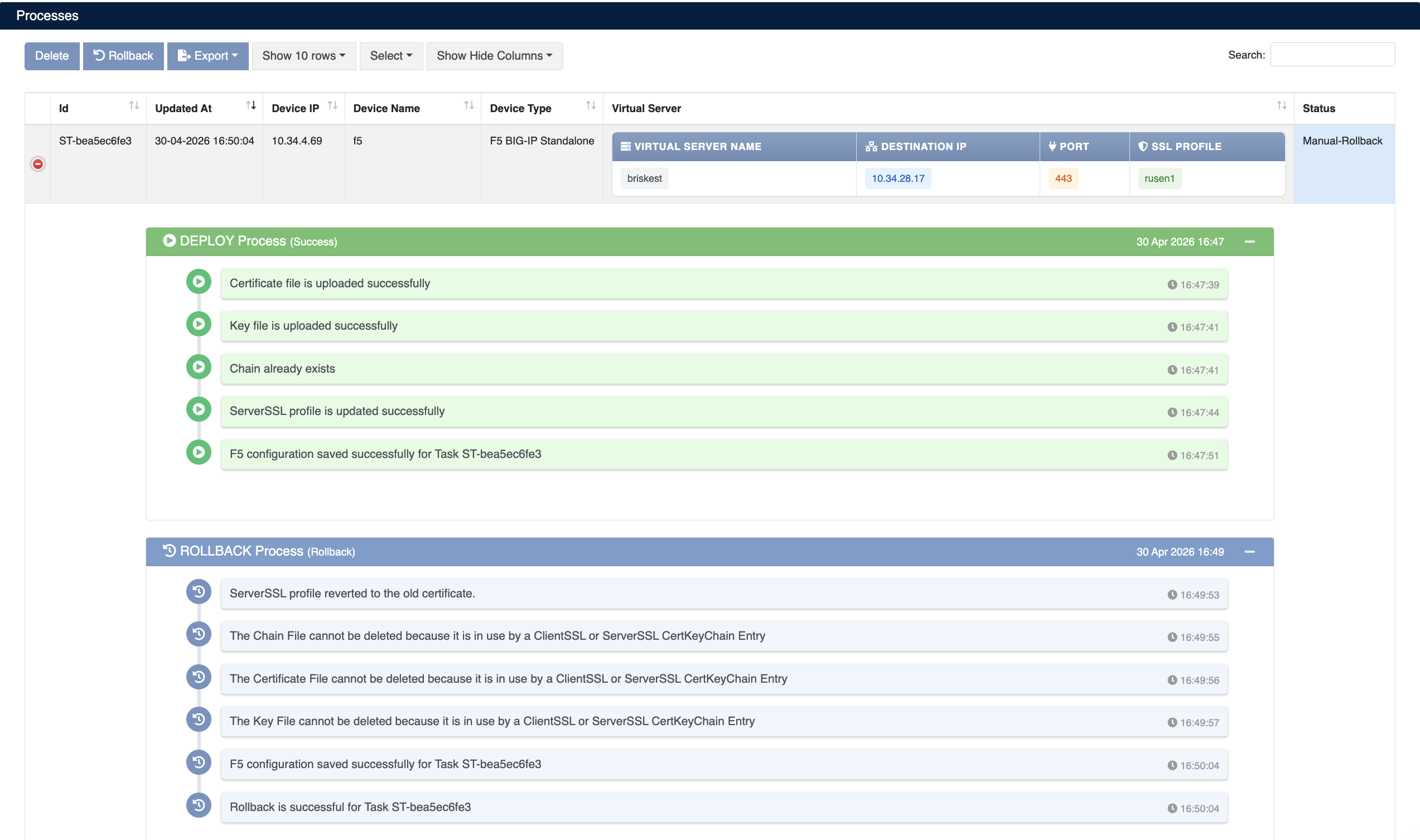

Override Mode:

Clone Based Mode:

Operation Details

Step	Parent-Based Mode	Override Mode	Clone Based Mode
1	Certificate, key, and chain files are uploaded to F5 BIG-IP device	Certificate, key, and chain files are uploaded to F5 BIG-IP device	Certificate, key, and chain files are uploaded to F5 BIG-IP device
2	A new Client SSL profile is created using the existing Client SSL profile as parent	Existing Client SSL profile is directly updated (no new profile created)	An exact copy (clone) of the existing Client SSL profile is created
3	The created new profile is assigned to the Virtual Server	Certificate in the profile is updated without changing VS configuration	Certificate on the cloned profile is updated and assigned to the Virtual Server

Difference Between Clone Based and Parent-Based

In Parent-Based mode, the new profile references the existing profile as its parent (an inheritance relationship is established). In Clone Based mode, all settings of the existing profile are copied exactly, with no parent relationship — only the certificate on the cloned profile is updated.

Rollback Operation

The Manual Rollback feature can be used in case of issues after certificate deployment.

Automatic Rollback

If an error occurs at any step during the deployment process, the system automatically performs a rollback and all changes are reverted.

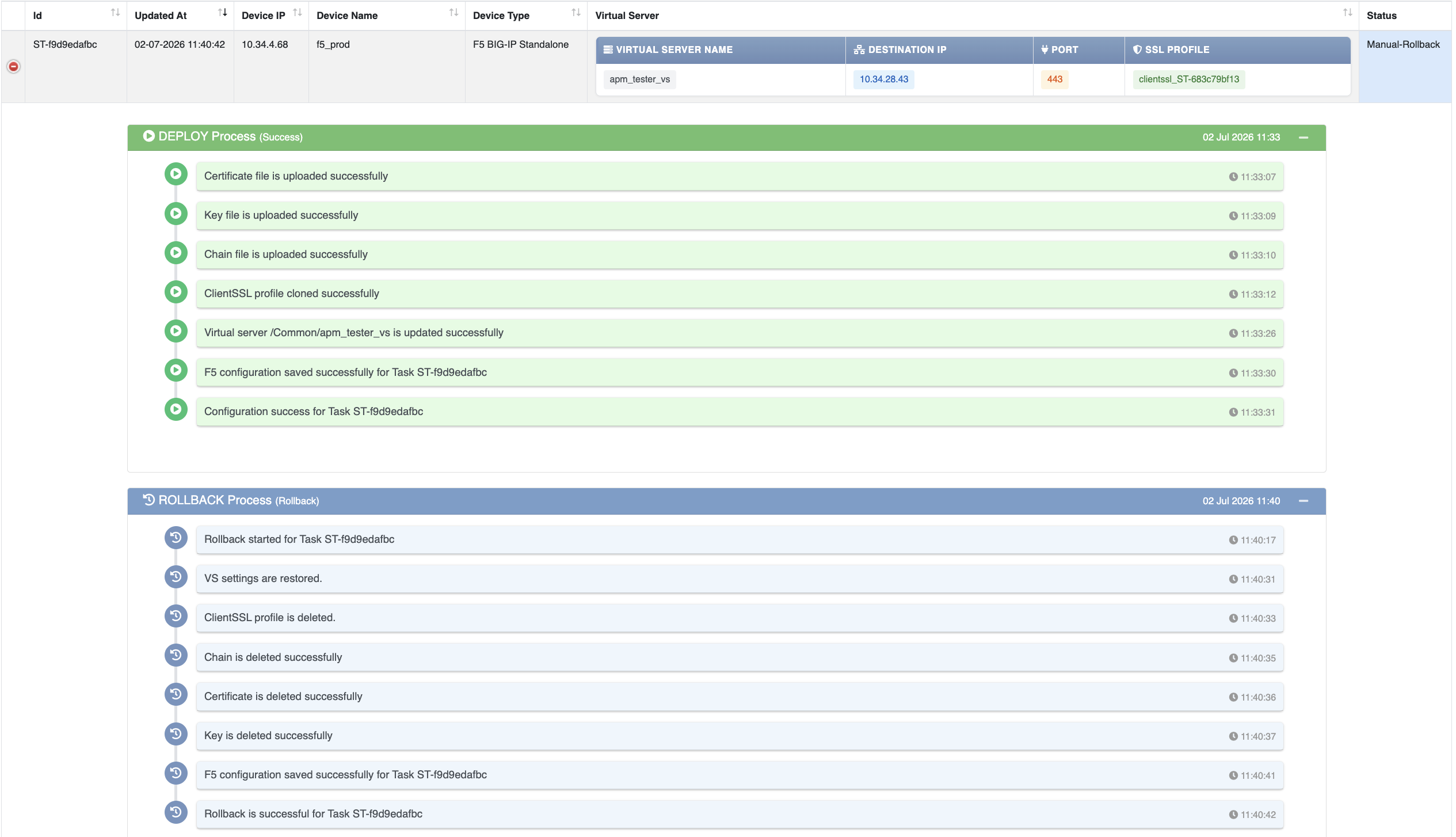

Rollback Steps

1. Navigate to Automation > Processes
2. Find the operation you want to rollback
3. Use the Manual-Rollback option in the Status column
4. Confirm

Operations During Rollback

Step	Parent-Based Mode Rollback	Override Mode Rollback	Clone Based Mode Rollback
1	VS's previous profile settings are restored	Certificate references in the profile are reverted to the old certificate	VS's previous profile settings are restored
2	Profile created during deployment is removed	Newly uploaded certificate, key, and chain files are deleted	Cloned profile created during deployment is removed
3	Certificate, key, and chain files are deleted from F5 device	-	Certificate, key, and chain files are deleted from F5 device
