Apache HTTP Server

SecTrail CM establishes agent-less connections to Apache HTTP Servers to enable automatic deployment and renewal of SSL certificates.

Connection Requirements​

RequirementDetailDescription
ProtocolSSH (Secure Shell)Secure remote connection protocol
Port22Standard SSH port or custom port
AuthenticationSSH Key or PasswordAuthentication with SSH key or password
User PermissionConfiguration read/write permissionAccess and edit permission for Apache config files

Automatic Operations​

SecTrail CM automatically performs the following operations on Apache HTTP Server:

  1. Certificate and Key Upload: Secure transfer of SSL certificate, private key, and chain file
  2. Configuration Update: Updating Apache VirtualHost SSL directives
  3. Configuration Test: Syntax check and validation
  4. Service Reload: Seamless reloading of Apache service

Configuration Steps​

1. Create Apache Linux User​

Navigate to Automation > Device Users and create a user for Apache.

2. Add Apache Device to SecTrail CM​

Click Automation > Devices > Add New Device button and enter the following information:

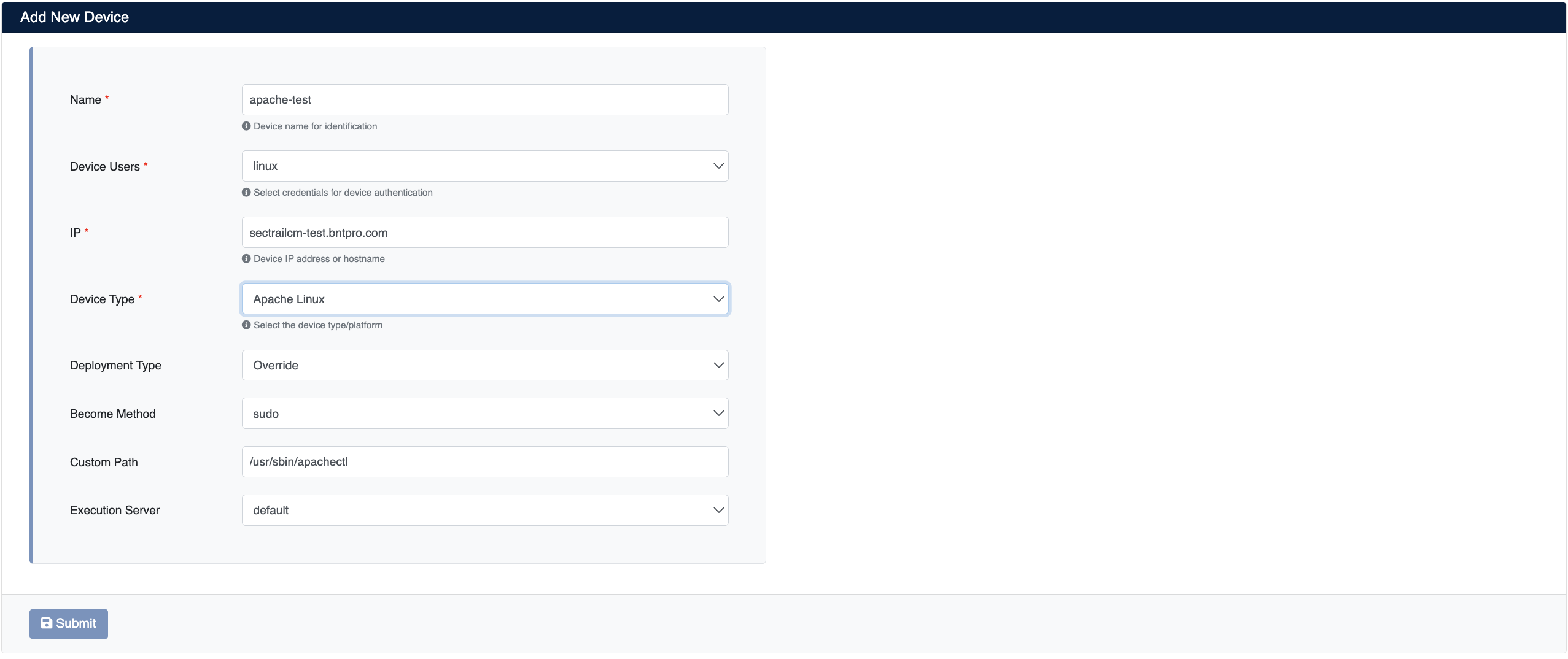

Add Apache Device

  • Name: Give a descriptive name for the device
  • Device Users: Select the user you created in Step 1
  • IP: Enter the IP address of the Apache server
  • Device Type: Select Apache Linux from the dropdown menu
  • Become Method: Select privilege escalation method
  • Custom Path: Enter the path to the Apache binary file (e.g., /usr/sbin/apachectl)
Automatic Discovery

After the Apache device is added to SecTrail CM, IP addresses and ports of all Virtual Hosts defined on the device are automatically included in the discovery period and regularly scanned.

3. View Device Information​

After adding a device, it will be displayed in the Automation > Devices list. Click on the row to view device details:

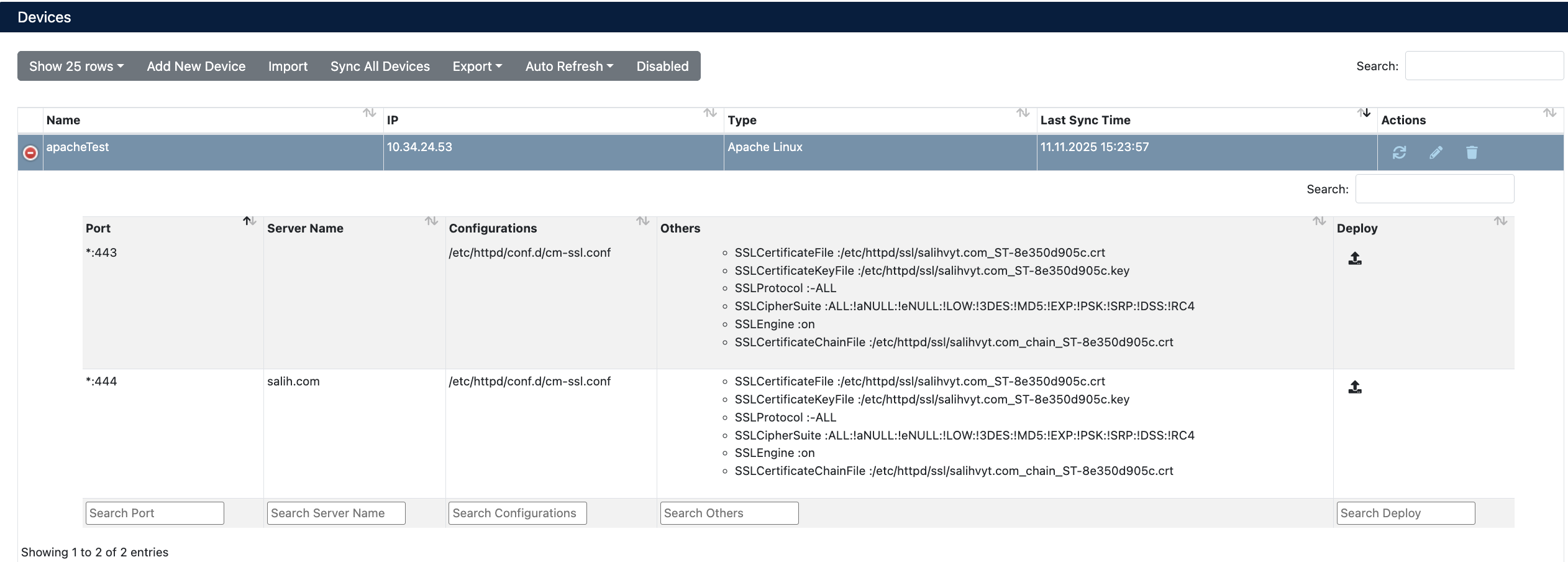

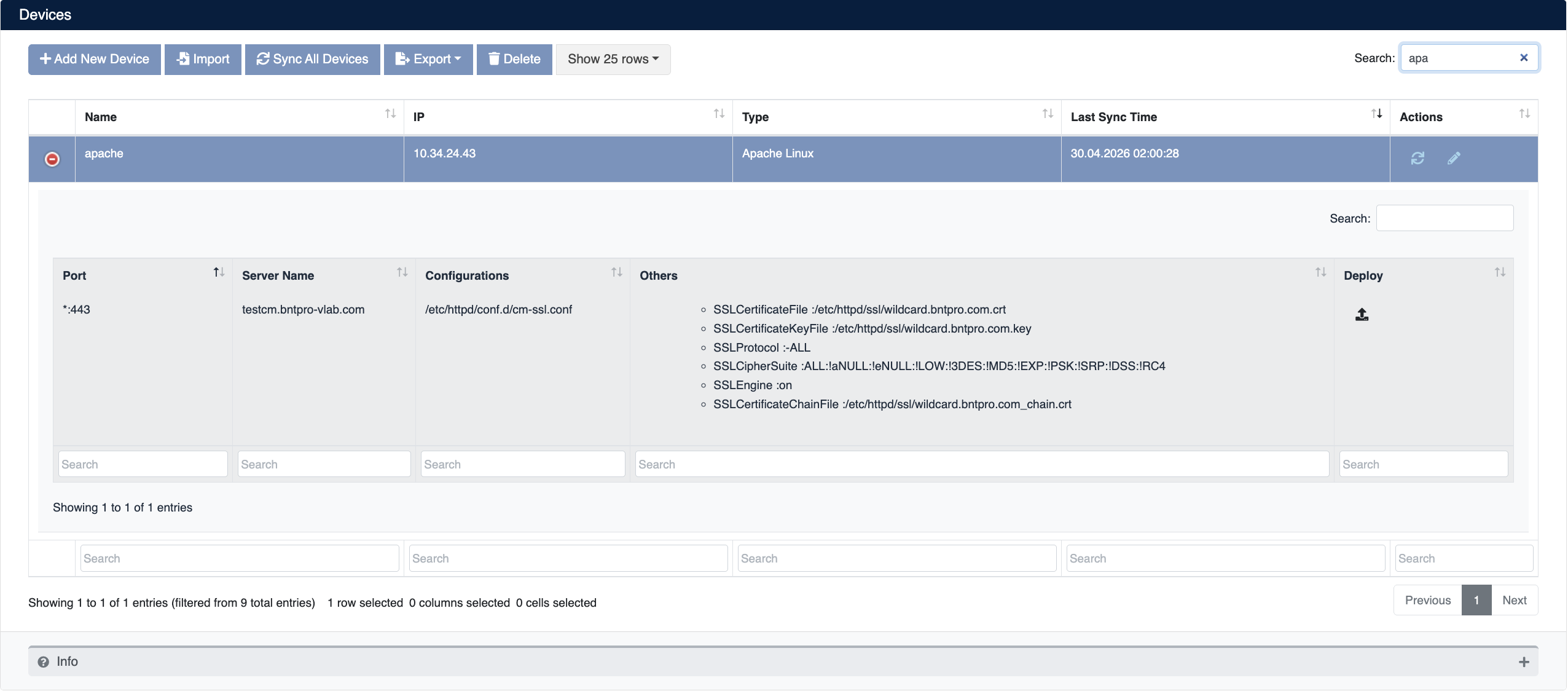

Apache Device Details and Virtual Host List

  • Port: Ports Apache is listening on (e.g., *:443, *:444)
  • Server Name: VirtualHost server name or * (all hosts)
  • Configurations: Apache configuration file path (e.g., /etc/httpd/conf.d/cm-ssl.conf)
  • Others: Current SSL configuration details
  • Deploy: For certificate deployment

Certificate Deployment​

Step 1: Virtual Host and Certificate Selection​

  1. Select your Apache device from the Automation > Devices section
  2. In the device details, find the Virtual Host you want to deploy a certificate to
  3. Click the Deploy button on the relevant row
  4. In the Deploy Certificate window that opens:
    • Virtual Servers: Target Virtual Host information is displayed (IP, port, server name)
    • Certificate: Select the certificate you want to deploy from the dropdown menu

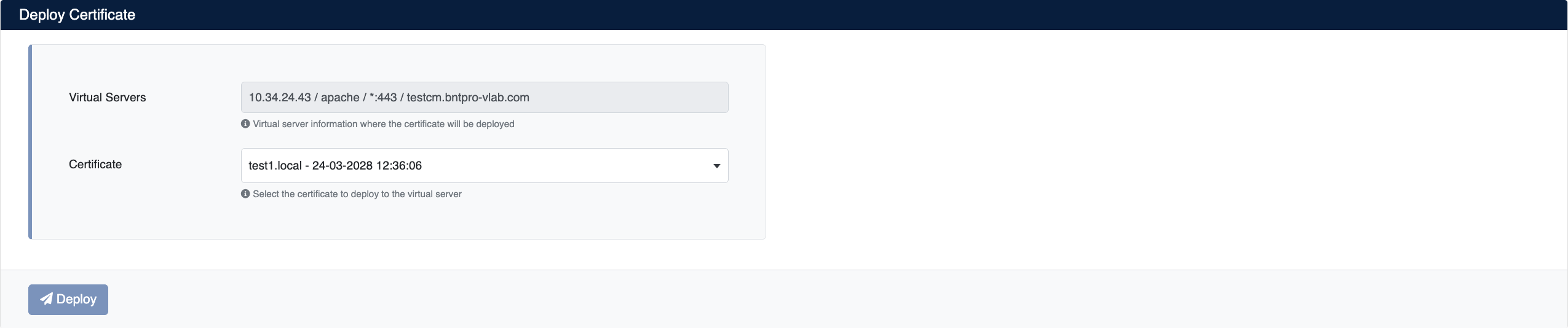

Certificate Deployment Screen

Step 2: Start Deployment Process​

Click the Deploy button to start the certificate deployment process.

Step 3: Process Tracking​

The deployment process can be tracked from the Automation > Processes section:

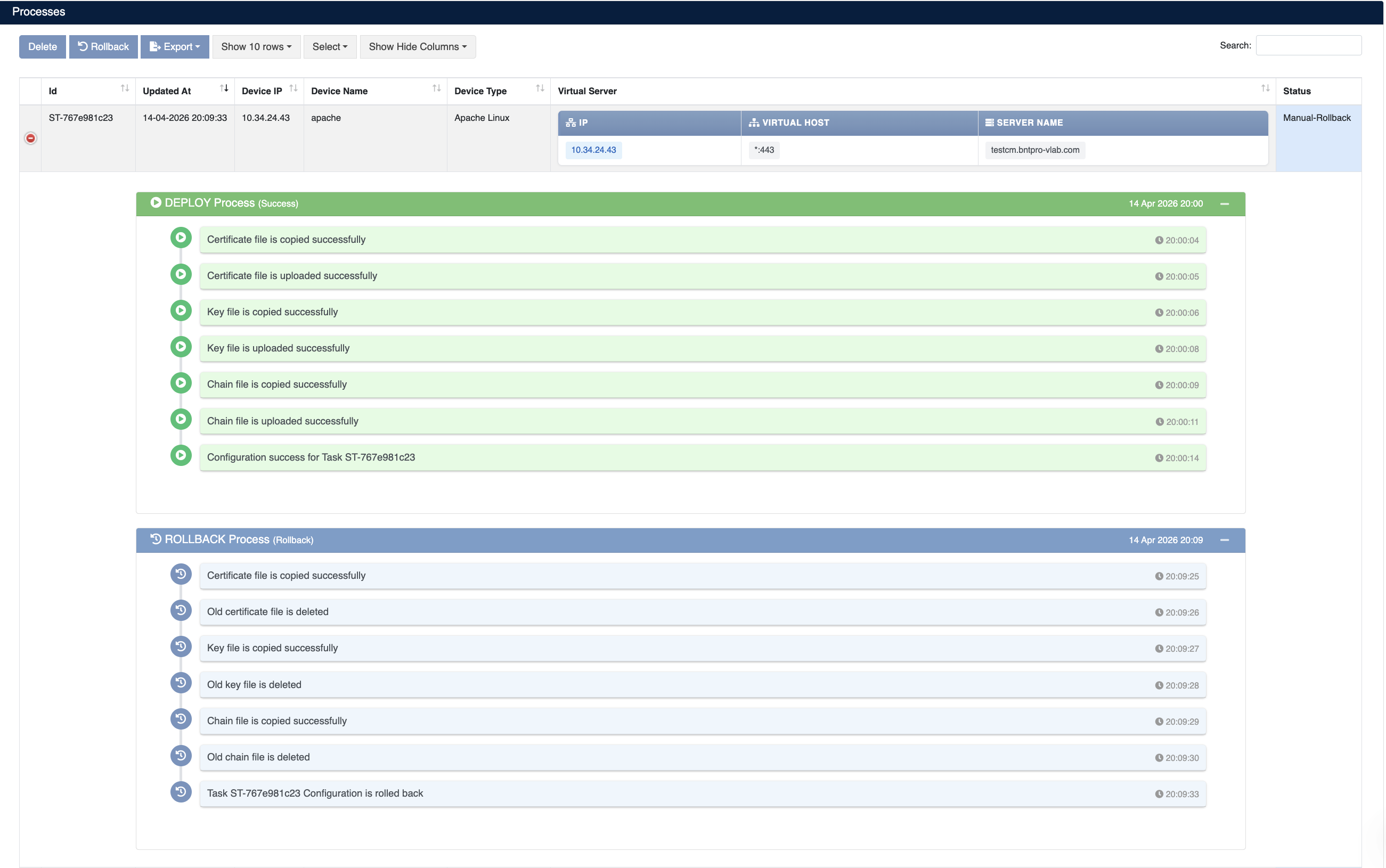

Apache Deployment Processes

Process Details​

The following steps are performed during deployment:

StepProcess Description
1Certificate, key, and chain files are uploaded to the server
2Current certificate files are backed up
3New certificate configuration is applied
4Apache service is reloaded

Rollback Process​

If problems occur after certificate deployment, the Manual Rollback feature can be used.

Automatic Rollback

If an error occurs during any step of the deployment process, the system automatically performs the rollback operation and all changes are reverted.

Rollback Steps​

  1. Navigate to Automation > Processes
  2. Find the process you want to roll back
  3. Use the Manual-Rollback option in the Status column
  4. Confirm

Operations During Rollback​

StepOperation
1New configuration is removed
2Backed up certificate files are restored
3Newly uploaded certificate, key, and chain files are deleted
4Apache service is reloaded
