HashiCorp Vault

SecTrail CM integrates with HashiCorp Vault to enable automatic requesting and management of enterprise SSL/TLS certificates.

Connection Requirements

Requirement	Detail	Description
Protocol	HTTPS	Vault API is used
Port	Used Port	Standard Vault API port
Authentication	Token Authentication	Authentication with Vault token
User Permission	PKI Secret Engine Read/Write	Certificate request and enrollment permission

Automatic Operations

SecTrail CM automatically performs the following operations on HashiCorp Vault:

1. Certificate Request: CSR (Certificate Signing Request) submission
2. Certificate Enrollment: Certificate issuance through Vault PKI Engine
3. Role Management: Using different certificate roles
4. Automatic Approval: Automatic approval for configured roles

Configuration Steps

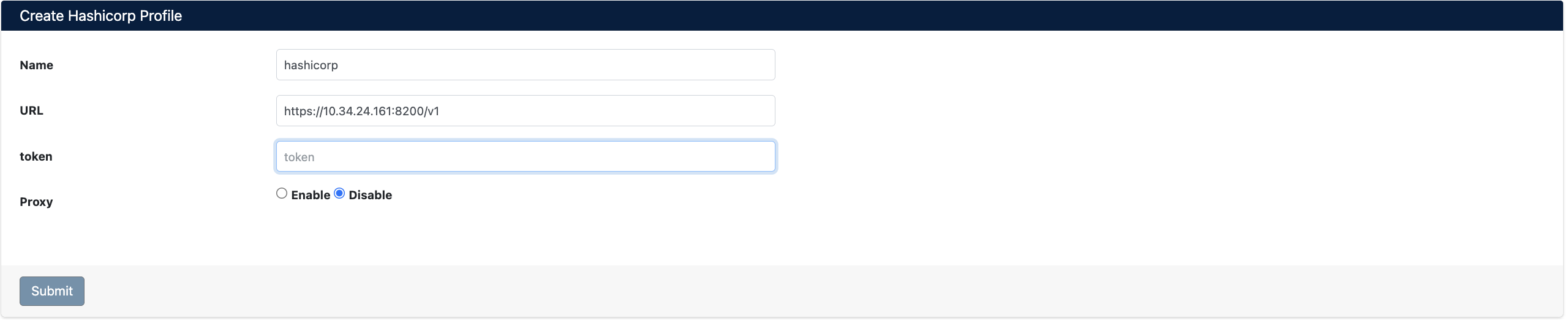

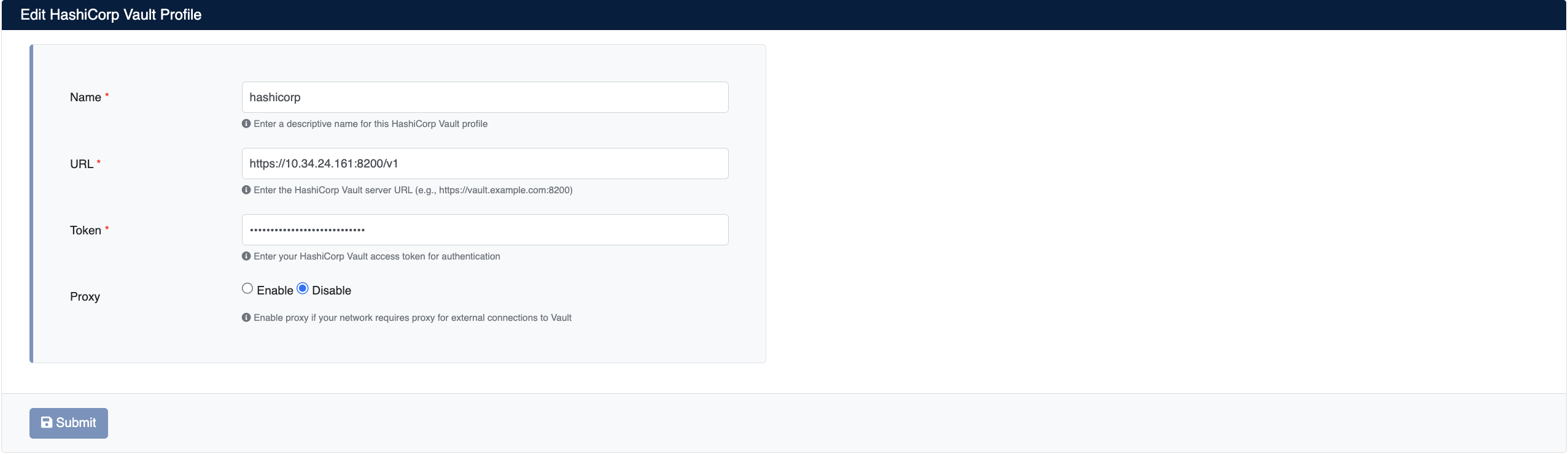

1. Add HashiCorp Vault Profile

Navigate to Integrations > Hashicorp and click the Create button:

Enter the following information:

• Name: Profile name
• URL: Vault server URL
• Token: Vault API token
• Proxy: Proxy usage (Enable/Disable)

Click Submit button to save the profile.

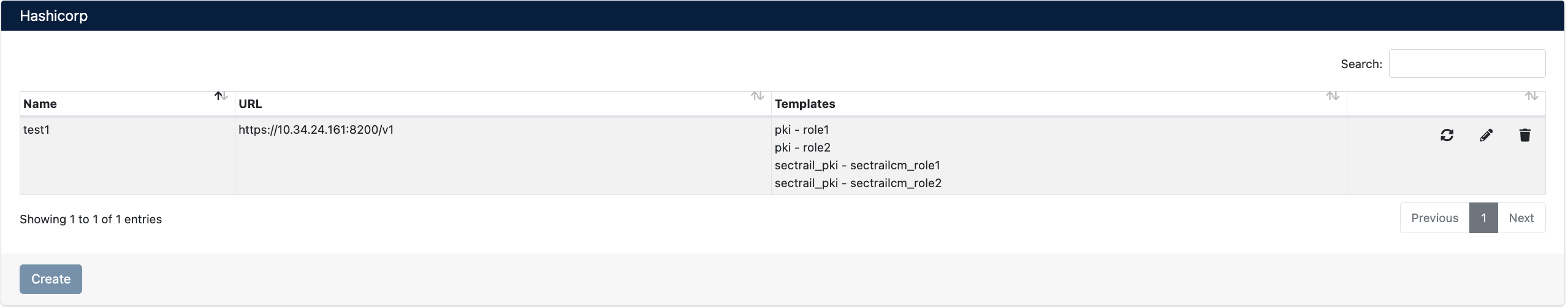

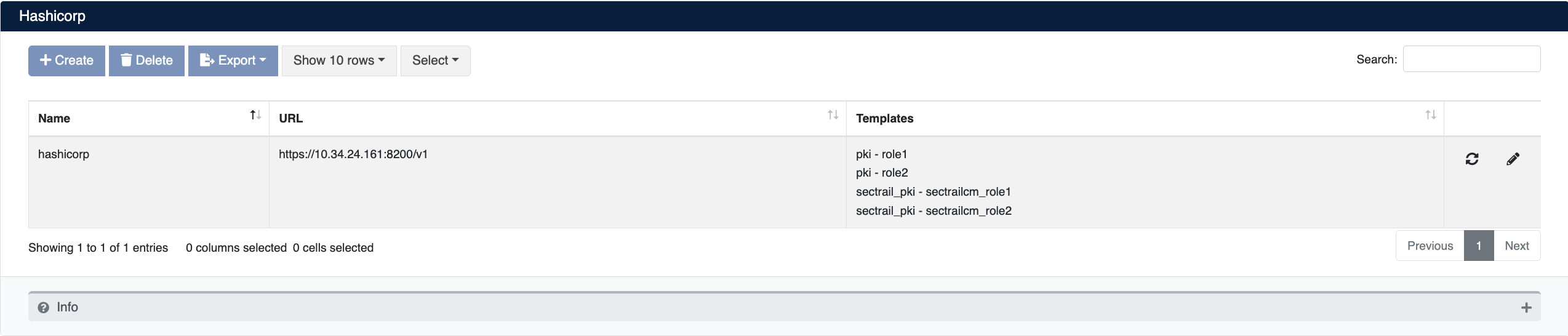

2. View HashiCorp Vault Profiles

After adding a profile, it will be displayed in the Integrations > Hashicorp list:

The list screen displays the following information:

• Name: Profile name
• URL: Vault server address
• Templates: Available certificate roles (PKI roles)

Profile Operations

The following operations can be performed for each profile:

• Refresh: Refresh profile information and role list
• Edit: Edit profile settings
• Delete: Delete profile

Certificate Signing

With HashiCorp Vault integration, you can perform certificate signing with your desired role. Role selection determines the certificate's validity period, purpose, and security level.
