ADFS Integration

SecTrail MFA provides full integration with Microsoft Active Directory Federation Services (ADFS). You can add multi-factor authentication to all services behind ADFS.

MFA with ADFS​

SecTrail MFA integrates into the ADFS authentication pipeline, adding MFA to all ADFS-protected applications.

Supported Scenarios​

🔐 Exchange OWA (Outlook Web Access)​

Adding MFA to Exchange OWA logins behind ADFS.

📊 SharePoint​

MFA protection for SharePoint portals and applications.

💼 Office 365​

MFA for Office 365 applications via ADFS.

🌐 Web Applications​

MFA for all web applications protected by ADFS.

Configuration Steps​

SecTrail MFA Side​

  1. API Client: An Agent-type API client must be created for the API information required during the installation of the SecTrail MFA Adapter.
  2. Application Profile: Factor configuration for ADFS.

ADFS Side​

The SecTrail MFA ADFS Adapter is installed on the ADFS server, and SecTrail MFA is selected as the MFA method on ADFS.

ADFS Adapter Installation Steps​

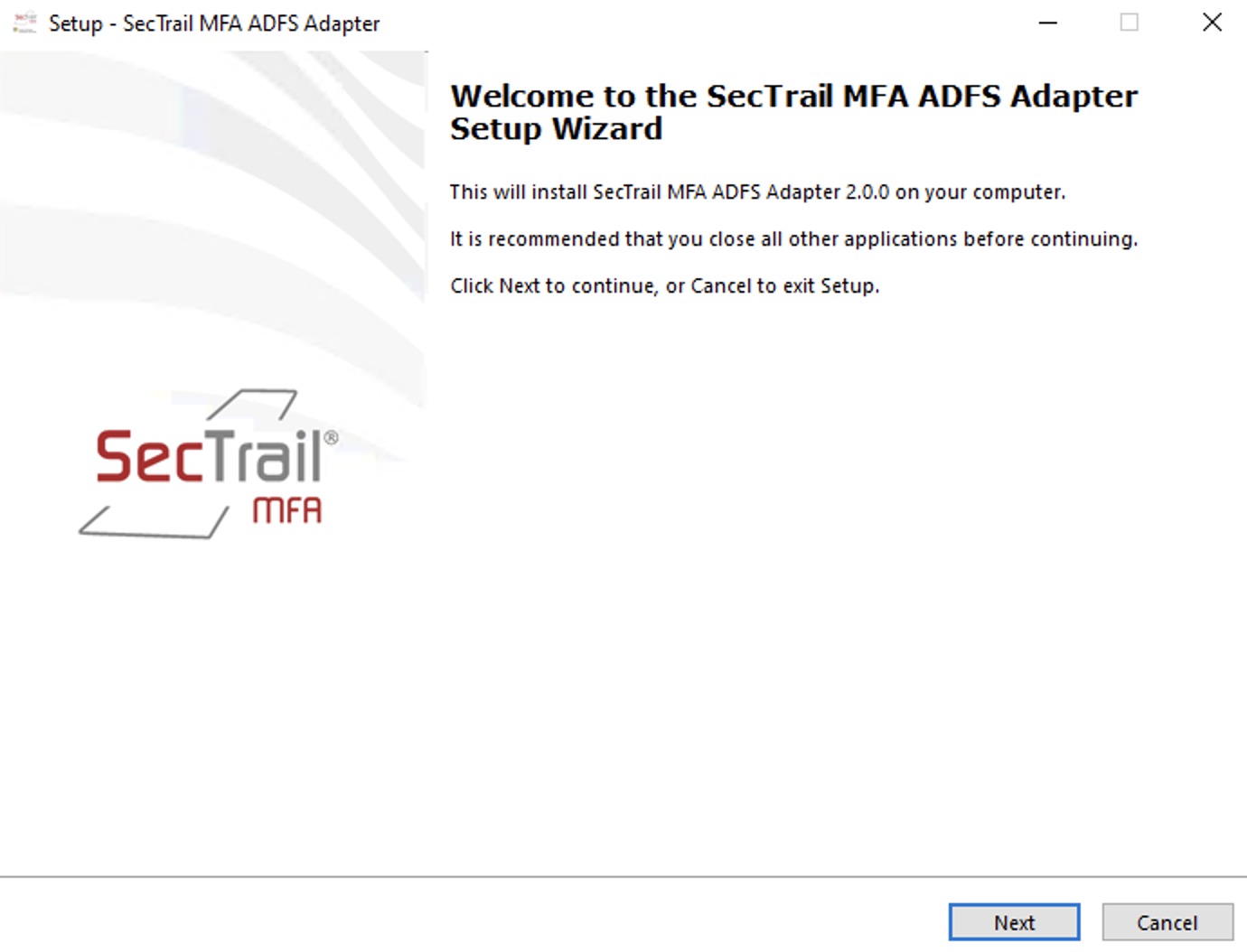

1. Start the Installation Wizard
ADFS-1

Start the SecTrail MFA ADFS Adapter 2.0.0 installation wizard. Click the **Next** button to continue.

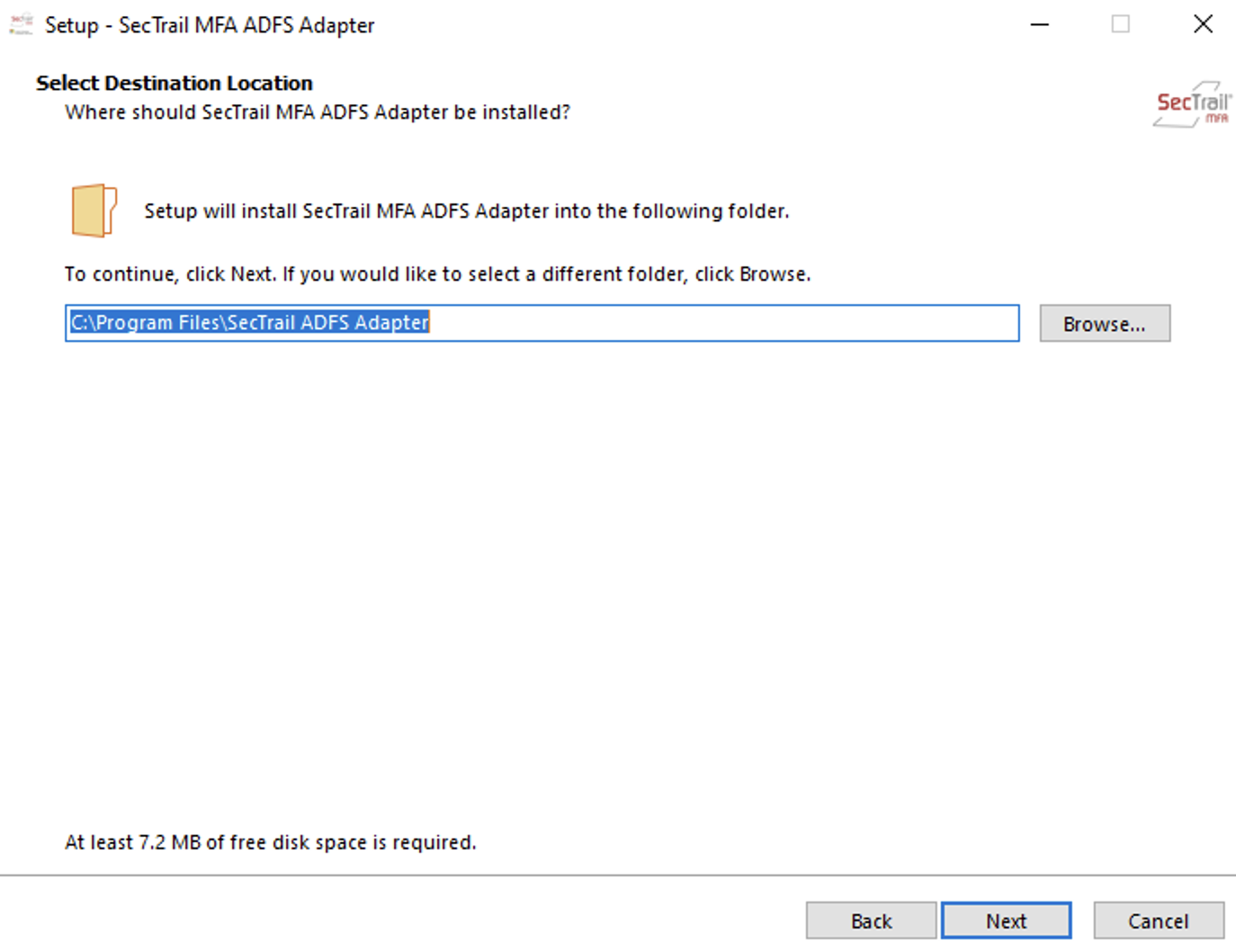

2. Select Installation Location
ADFS-2

Select the location where the Adapter will be installed. The default location is set to C:\Program Files\SecTrail ADFS Adapter. A minimum of 7.2 MB of free disk space is required.

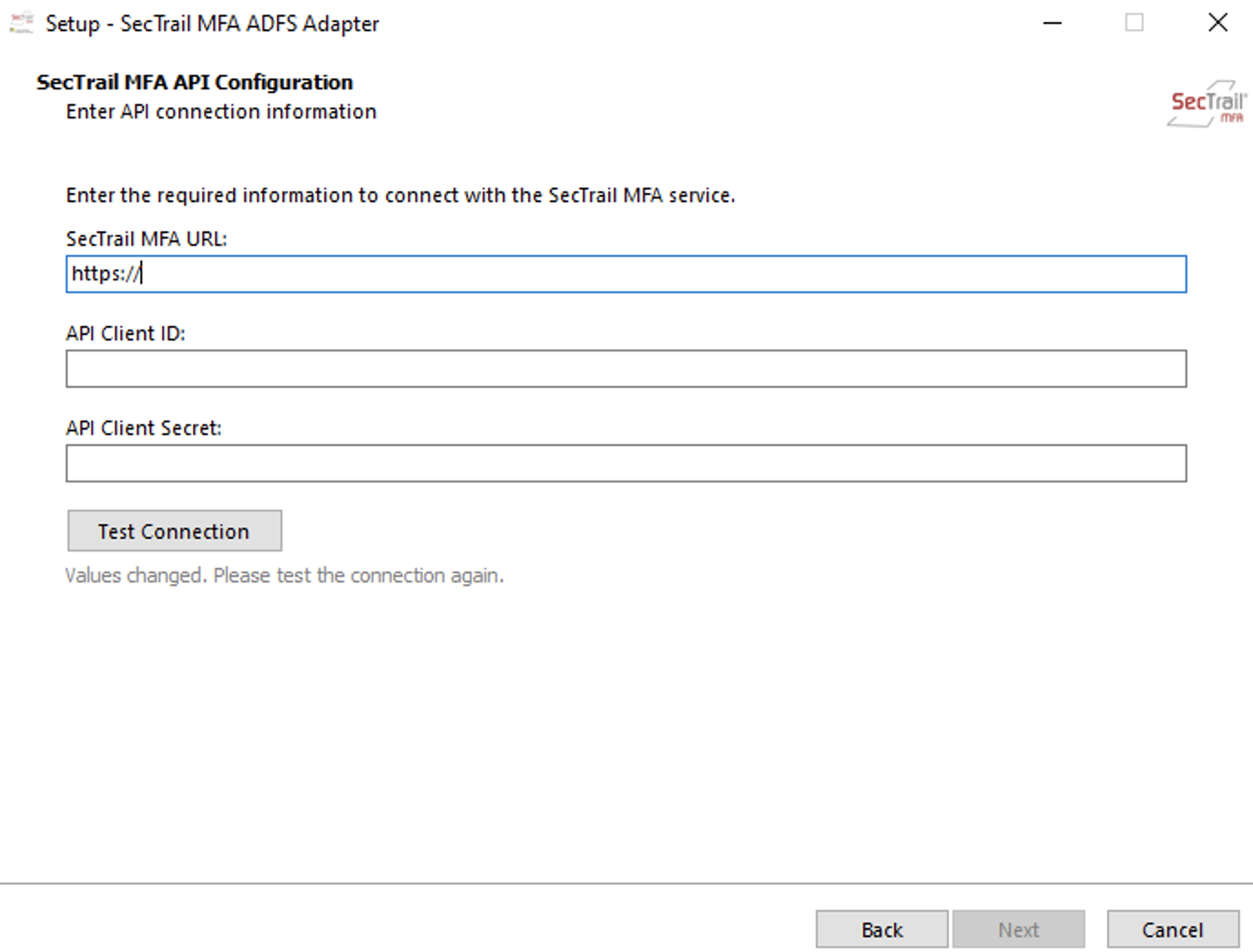

3. API Connection Information
ADFS-3

Enter the SecTrail MFA API connection information:

  • **SecTrail MFA URL**: The HTTPS address of your SecTrail MFA server
  • **API Client ID**: API Client credential
  • **API Client Secret**: API Client secret key

Test the connection with the **Test Connection** button.

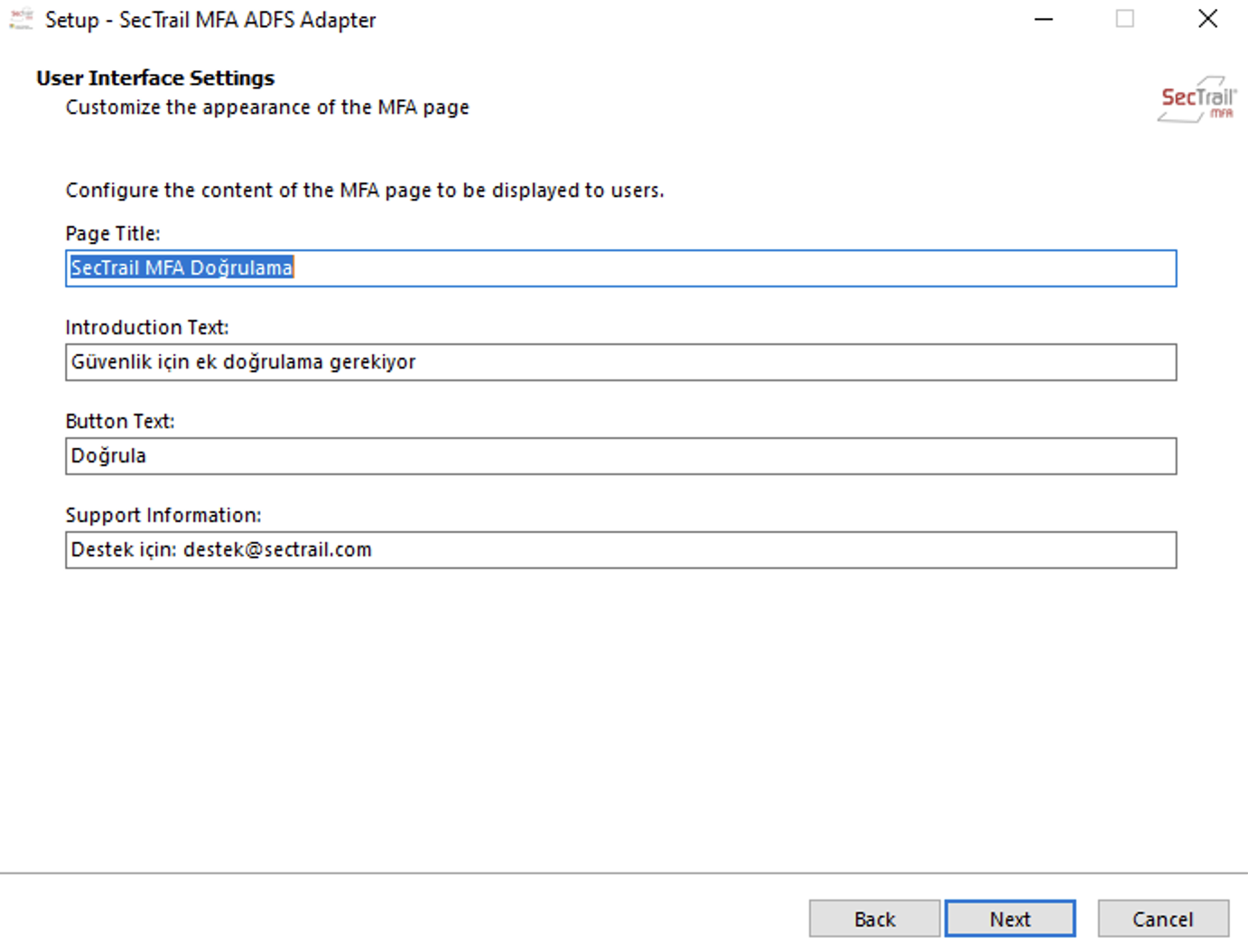

4. User Interface Settings
ADFS-4

Customize the appearance of the MFA page:

  • **Page Title**: Page title
  • **Introduction Text**: Description text
  • **Button Text**: Button text
  • **Support Information**: Support information

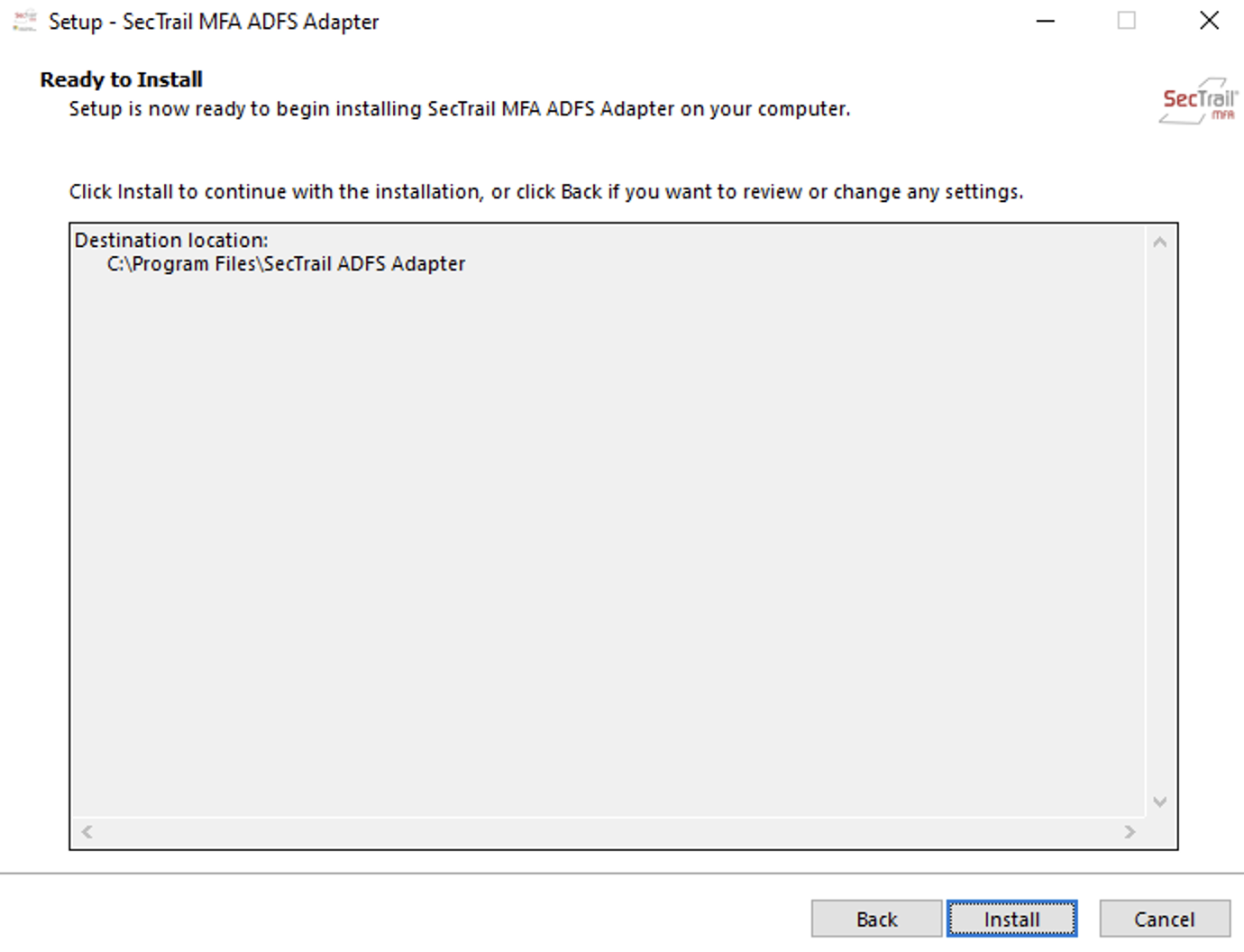

5. Ready to Install
ADFS-5

All settings are complete. Click the **Install** button to start the installation.

6. Installation Complete
ADFS-6

The SecTrail MFA ADFS Adapter has been successfully installed. Click the **Finish** button to close the installation wizard.

ADFS Configuration​

7. Enabling the MFA Method
ADFS-7

Open the ADFS Management Console and go to the **Authentication Methods** section:

  1. Select **Service > Authentication Methods** from the left menu
  2. Click the **Edit** link in the **Multi-factor Authentication Methods** section
  3. Select the SecTrail MFA Adapter as the MFA method

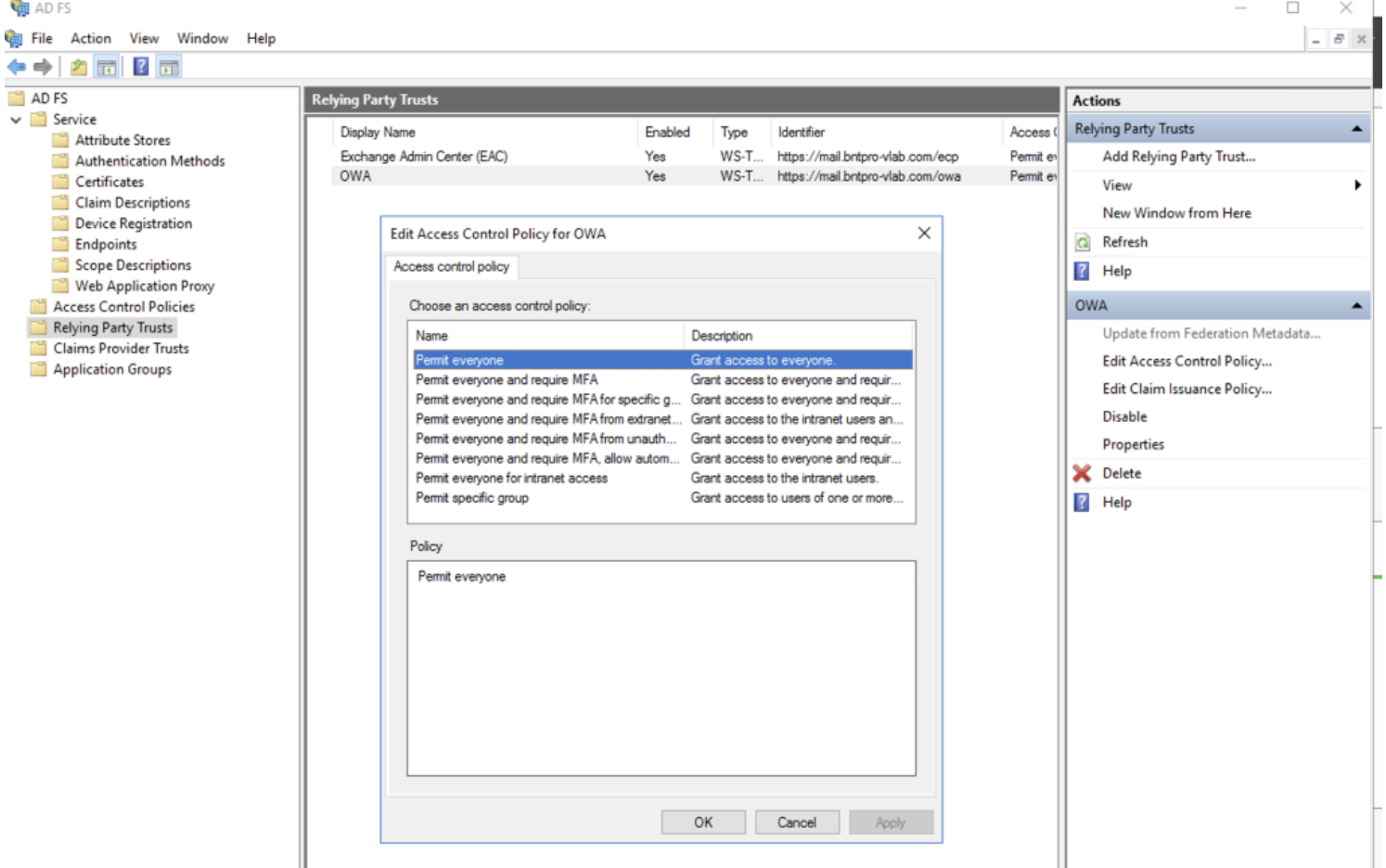

8. Relying Party Trust Configuration
ADFS-8

Apply MFA to your applications:

  1. Select the relevant application (e.g., OWA) in the **Relying Party Trusts** section
  2. Open the **Edit Access Control Policy** option
  3. Select a policy that requires MFA (e.g., "Permit everyone and require MFA")
  4. Save the changes with **Apply** and **OK**

After completing these steps, SecTrail MFA verification will be initiated during access to the applications you selected.

Supported Authentication Methods​

Authentication methods that can be used in ADFS integration:

  • LDAP Verification: Authentication with an Active Directory or LDAP server
  • Local Verification: Authentication with SecTrail MFA's local user database
  • LDAP+OTP: Two-factor authentication with password + OTP in a single screen
  • Soft OTP: Time-based one-time password via mobile application (SecTrail Authenticator)
  • SMS OTP: One-time password sent via SMS
  • Mail OTP: One-time password sent via Email
  • Push Notification Verification: Approval via push notification through the mobile application (SecTrail Authenticator)
  • Approved OTP: Verification with pre-approved OTP codes

Benefits​

  • ✅ Centralized MFA: Single point MFA for all applications behind ADFS
  • ✅ Exchange OWA Protection: Adding MFA to email access
  • ✅ Seamless Integration: Works like ADFS's native MFA feature
  • ✅ User Friendly: End-user experience is not affected
