Geolocation Policies

Geolocation policies allow you to control which countries users are allowed to authenticate from. This feature enables you to permit or deny access based on the user's geographic location, aligned with your organization's security requirements.

What Is Geo-Location?​

Geo-location access control determines the user’s country by analyzing their IP address and decides whether to allow or deny access according to configured policies. The system supports two operation modes: Whitelist and Blacklist.

Configuration Options​

SP Manuel Giriş Formu

Geo Location Policies

Profile Name​

A descriptive name used to identify the policy profile.

Policy Type​

Geolocation policies operate in two modes:

1. Whitelist Mode​

Only selected countries are allowed. Any country not on the list is automatically blocked.

Use Case: If you want to allow access only from Turkey, Germany, and the USA, you add these countries to the whitelist and all others are denied.

2. Blacklist Mode​

Selected countries are blocked. All other countries are allowed.

Use Case: If you want to block access from known high-risk regions, you add those countries to the blacklist.

RADIUS Attribute​

Specifies which RADIUS attribute will be used to retrieve the user’s IP address.

Common Attributes:

  • Framed-IP-Address
  • Calling-Station-Id
  • NAS-IP-Address

Country Selection​

Select one or more countries to allow (whitelist) or deny (blacklist).

NAS Configuration​

Defines which NAS (Network Access Server) devices the policy applies to. Different VPN servers or network devices may use different geolocation policies.

How It Works​

Whitelist Mode​

  1. User Attempts Login
  2. IP Address Retrieved: Extracted from the configured RADIUS attribute
  3. Country Identified: Mapped using the GeoIP database
  4. Whitelist Check:
    • Country in list: Access allowed
    • Not in list: Access denied

Blacklist Mode​

  1. User Attempts Login
  2. IP Address Retrieved
  3. Country Identified
  4. Blacklist Check:
    • Country in list: Access denied
    • Not in list: Access allowed

Use Cases​

Regional Access Restrictions​

Scenario: The company operates only within Turkey and the EU.

Solution: Add Turkey and all EU countries to the whitelist.

Threat Prevention​

Scenario: Attacks originate from specific countries.

Solution: Add these countries to the blacklist.

Compliance Requirements​

Scenario: Regulations require blocking or restricting access from certain locations.

Solution: Use whitelist mode to allow only compliant regions.

Corporate Policy Enforcement​

Scenario: Employees are allowed remote access only from specific countries.

Solution: Whitelist approved locations.

Setup Steps​

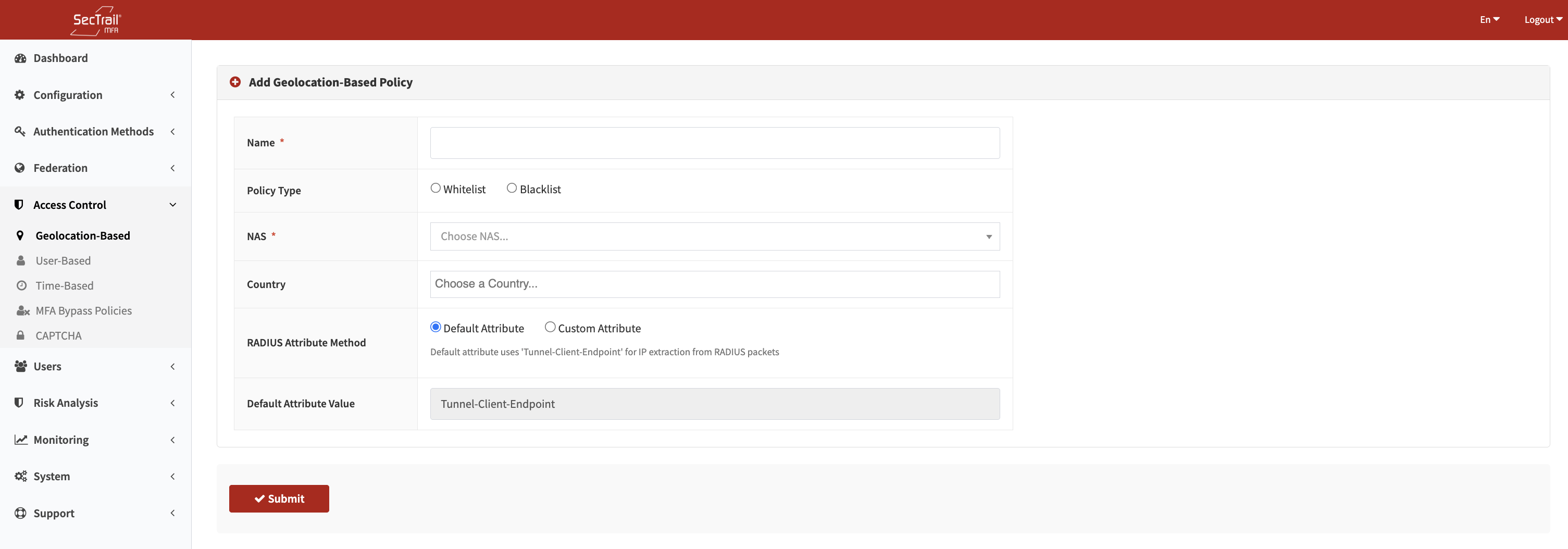

  1. Create a Geolocation Profile in the Access Control → Geolocation Policies section
  2. Select the Policy Type: Whitelist or Blacklist
  3. Define the RADIUS Attribute: Choose the attribute containing the user’s IP
  4. Select Countries: Add countries to allow or block
  5. Configure NAS Devices: Select which servers the policy applies to
  6. Test the Policy: Try logging in from different IPs

Advantages​

  • ✅ Geographic Security Control: Block access from high-risk regions
  • ✅ Compliance: Aligns with data protection regulations
  • ✅ Flexible: Supports both whitelist and blacklist strategies
  • ✅ Automated Detection: IPs automatically mapped to countries
  • ✅ NAS-Specific Configuration: Apply different rules per device

Technical Details​

  • IP Database: Uses MaxMind GeoIP2 or a similar database
  • Updates: Database is updated regularly
  • Performance: Lookup completes within milliseconds
  • Logging: All blocked access attempts are logged
  • RADIUS Integration: Fully compatible with RADIUS workflows

Important Considerations​

  • Geolocation databases are not 100% accurate, especially with VPNs or proxies
  • With whitelisting, consider countries employees may travel to
  • Blacklists must be regularly updated to include new threat regions
  • NAS configuration must be correct for policies to take effect
  • Selected RADIUS attribute must contain the correct IP
  • For VPN users, the VPN egress IP determines the country
  • Ensure you do not accidentally lock yourself out when using whitelists

Geo-Location Database Maintenance​

  • Update the GeoIP database monthly
  • Test functionality after each update
  • Keep backups of previous versions
  • IP ranges can change frequently, so updates are critical

Troubleshooting​

Authorized Users Are Blocked​

  • Verify the user’s country is in the whitelist
  • Ensure the RADIUS attribute contains the correct IP
  • Check whether the GeoIP database is up to date

Policy Doesn't Apply​

  • Confirm NAS configuration is correct
  • Verify the chosen RADIUS attribute
  • Review SecTrail MFA logs
  • Determine the VPN’s public exit IP country
  • Add corporate VPN exit locations to the whitelist
