ACME Server

SecTrail CM includes a built-in ACME Server (RFC 8555). This allows the servers, containers, and automation tools in your organization to obtain and automatically renew certificates through SecTrail CM using standard ACME clients such as Certbot, acme.sh, Caddy, Traefik, and win-acme.

Instead of connecting to an external certificate authority such as Let's Encrypt, your ACME clients use SecTrail CM directly as their ACME server. Certificates are issued by the CAs managed by SecTrail CM (Local CA, Microsoft ADCS, etc.) according to the template rules you define.

ACME Client or ACME Server?

• ACME Client: SecTrail CM acting as a client to obtain certificates from an external ACME certificate authority (Let's Encrypt, ZeroSSL, Buypass, etc.).
• ACME Server (this document): SecTrail CM acting as a server, publishing its own ACME service and issuing certificates to internal clients.

Benefits

• Internal automation: A fully automated certificate lifecycle, including for internal systems that are not exposed to the internet
• Standard clients: Compatibility with widely used tools such as Certbot, acme.sh, Caddy, Traefik, and Kubernetes cert-manager
• Centralized control: Which client can obtain certificates with which template is determined through EAB
• Full visibility: All issued certificates are automatically recorded in the SecTrail CM inventory
• Short-lived certificates: Frequent renewal strategies can be applied without creating manual workload

How It Works

The core components of the ACME Server are:

Component	Description
EAB Credential	The credential the client uses when registering an ACME account (kid + HMAC key). It is bound to a template and can optionally be restricted to specific domains.
Account	An ACME client account registered with an EAB. The account inherits the template of the EAB it is bound to.
Order	A certificate request created by an account for specific domain(s).

The flow proceeds as follows:

1. The administrator creates an EAB Credential in SecTrail CM and binds it to a certificate template.
2. The generated kid and HMAC key are shared with the relevant server/team.
3. The client performs an account registration against the SecTrail CM ACME Server using these EAB details.
4. The client creates an order; the domain validation (challenge) is completed. This step is skipped if the domain is listed in the EAB's Allowed Identifiers.
5. The certificate is issued according to the template rules bound to the EAB and is added to the inventory.
6. The client automatically renews the certificate with the same account before it expires.

Template Binding

An EAB credential can only produce certificates against the template it is bound to. The template determines which CA will be used, the validity period, key usage, and other certificate parameters. For template management, see Inventory → Issue Certificate → Templates.

EAB Credentials (External Account Binding)

EAB (External Account Binding) is an RFC 8555 mechanism that binds an ACME account to an identity that has been pre-authorized in your organization. EAB is mandatory for registering an account on the SecTrail CM ACME Server, so that only clients that have been issued a credential can obtain certificates.

Creating an EAB Credential

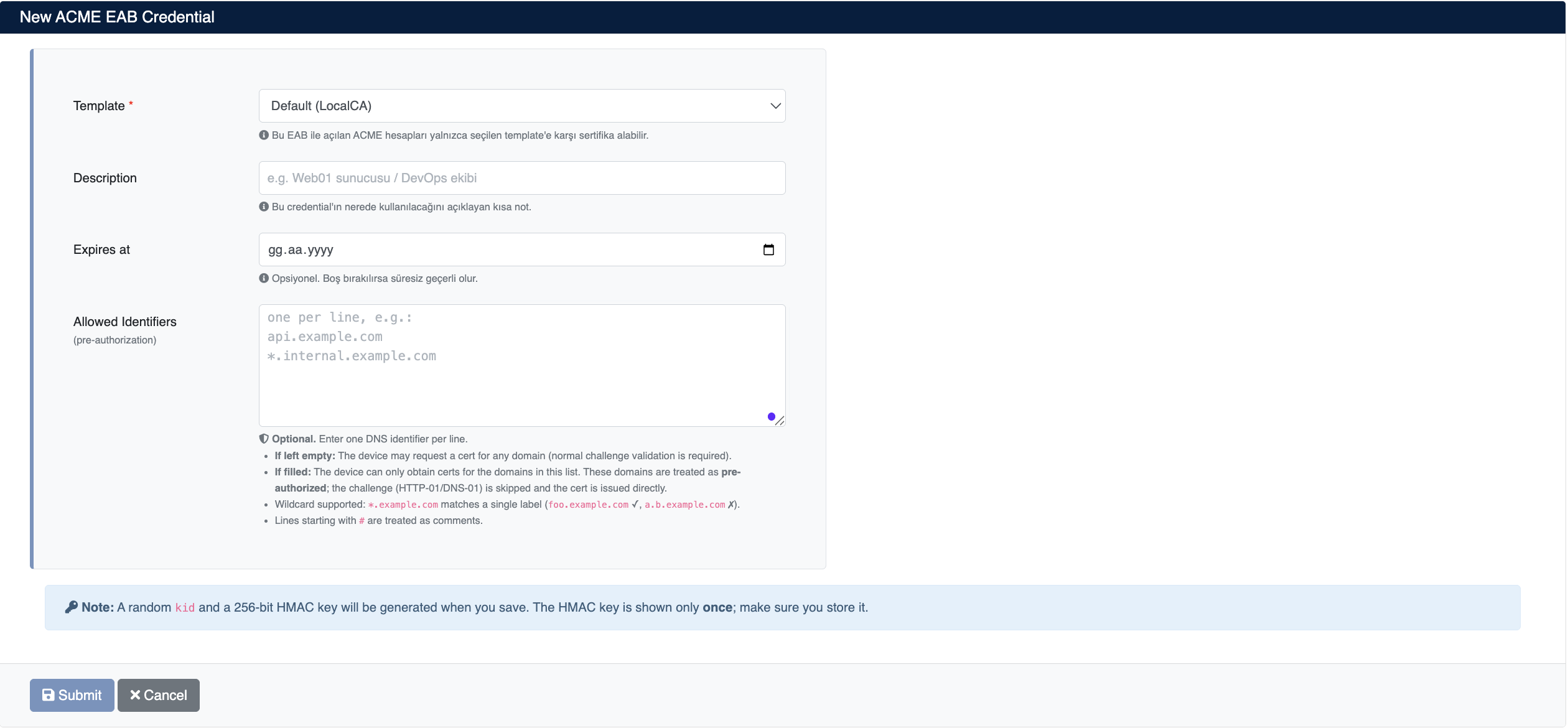

Navigate to Certificate Authorities (CA) > ACME Server > EAB Credentials and click the Create button:

Enter the following information:

• Template (required): The template against which ACME accounts registered with this EAB can obtain certificates. The CA, validity period, and profile information of the certificates the client receives are determined by this template.
• Description (optional): A short note explaining where the credential will be used (e.g. Web01 server / DevOps team). It helps you distinguish which credential belongs where when managing a large number of them.
• Expires at (optional): The expiry date of the credential. If left empty, it is valid indefinitely.
• Allowed Identifiers (optional): The list of domains for which certificates can be obtained with this credential. Enter one DNS identifier per line. If left empty, the client may request a certificate for any domain (normal challenge validation applies). For details, see Allowed Identifiers (Pre-Authorization).

Click the Submit button to create the credential.

The HMAC Key Is Shown Only Once

When you save, a random kid and a 256-bit HMAC key are generated. The HMAC key is shown only once; make sure you store it somewhere secure before closing the screen. If you lose the key, you will need to create a new EAB credential.

Allowed Identifiers (Pre-Authorization)

Allowed Identifiers lets you restrict the domain names for which an EAB credential can obtain certificates. The field may be left empty; when it is filled in, it acts both as a scope restriction and as a pre-authorization mechanism.

Case	Behavior
If left empty	The client may request a certificate for any domain. Normal challenge validation (HTTP-01 / DNS-01) is required for every requested domain.
If filled	The client can only obtain certificates for the domains in the list. These domains are treated as pre-authorized; the challenge step is skipped and the certificate is issued directly.

Field rules:

• Enter one DNS identifier per line.
• Wildcards are supported: *.example.com matches a single label (foo.example.com ✓, a.b.example.com ✗).
• Lines starting with # are treated as comments and ignored.

Example:

api.example.com
*.internal.example.com
web01.example.com

Requests for a domain that is not in the list are rejected, so the list also effectively limits which domain names the client can obtain certificates for.

EAB Credential List

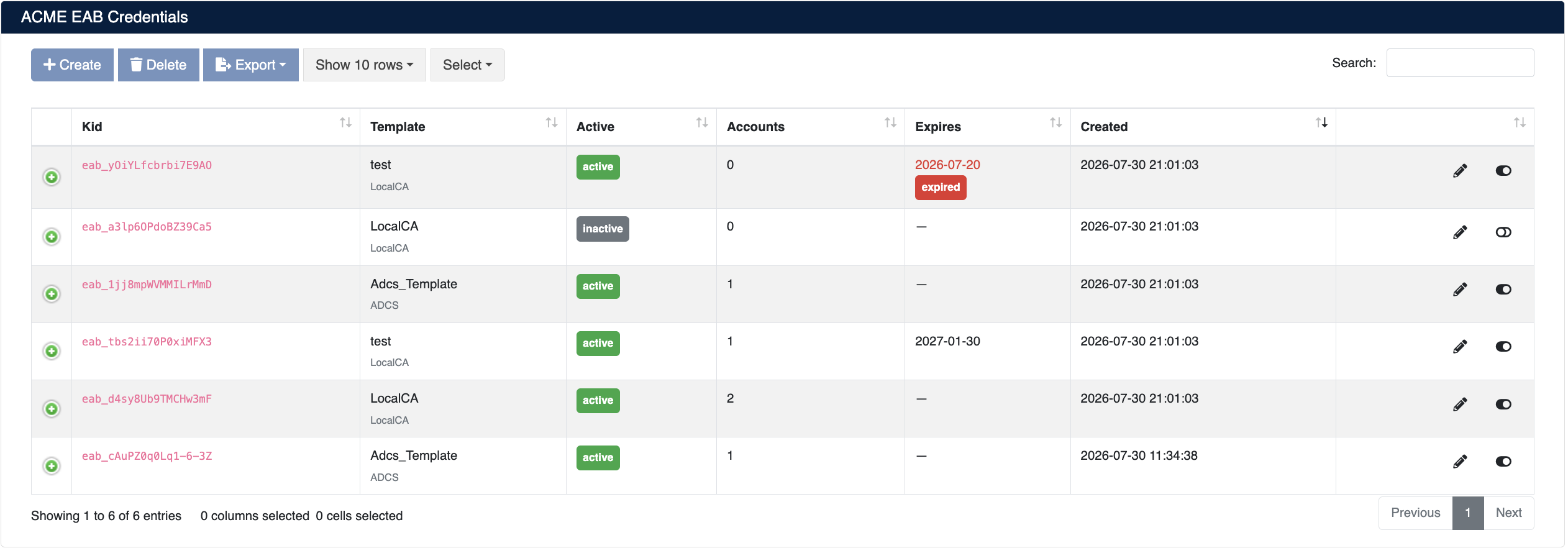

Created credentials are displayed in the Certificate Authorities (CA) > ACME Server > EAB Credentials list:

The list screen shows the following information:

Column	Description
Kid	The unique identifier of the credential (starts with the eab_ prefix). Used in the client configuration.
Template	The certificate template it is bound to and the CA type of that template (e.g. LocalCA, ADCS)
Active	Whether the credential is enabled (active) or disabled (inactive)
Accounts	The number of ACME accounts registered with this credential
Expires	The expiry date. If it has passed, it is marked with an expired label. — means it does not expire.
Created	The date the credential was created

Credential Operations

• Edit: Edit information such as the description, expiry date, and allowed identifiers
• Enable/Disable: Use the toggle at the end of the row to disable or re-enable the credential
• Delete: Delete the credential
• Export: Export the list

Disabling a Credential

When a credential is disabled or expires, no new ACME account can be registered with it. If you need to immediately stop a server from obtaining certificates, you must also deactivate the relevant ACME account in addition to disabling the credential.

ACME Accounts

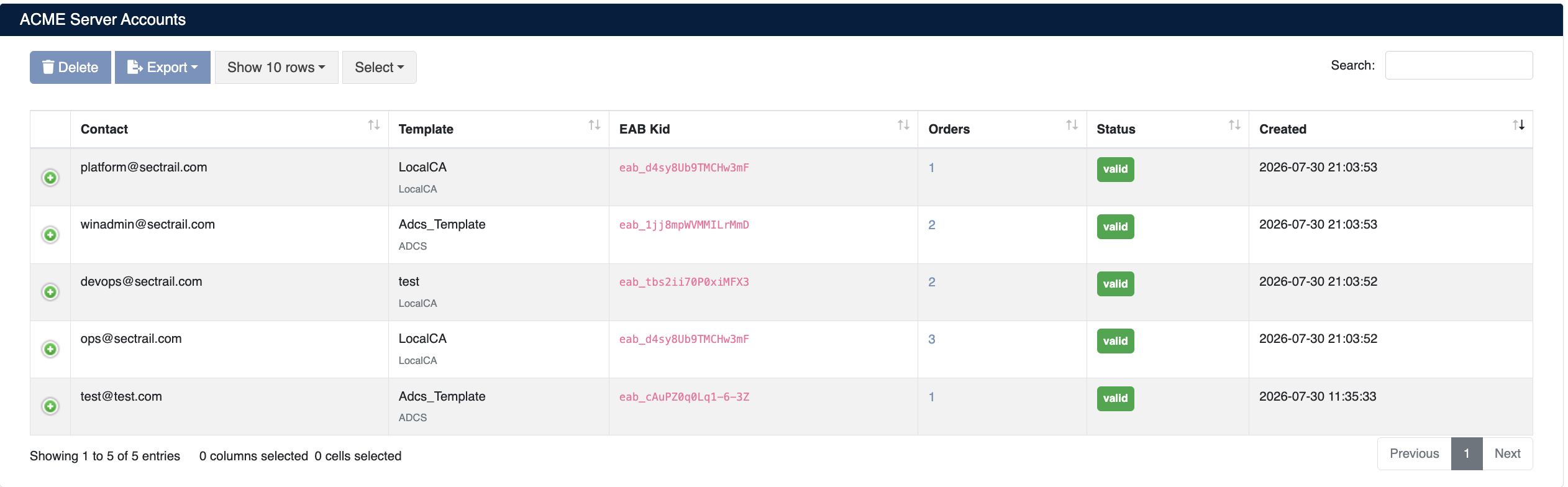

When clients register using their EAB details, the resulting accounts are listed under Certificate Authorities (CA) > ACME Server > Accounts:

The list screen shows the following information:

Column	Description
Contact	The contact email address the client provided during registration
Template	The certificate template of the account (inherited via the EAB) and the CA type
EAB Kid	Which EAB credential the account was registered with
Orders	The number of orders created by the account
Status	The account status (valid, deactivated)
Created	The date the account was created

Account Operations

• Details: View the details of the account using the + icon at the start of the row
• Delete: Delete the account
• Export: Export the list

Account - Template Relationship

An account is permanently bound to the template of the EAB credential it used at registration time. A client that wants to obtain certificates with a different template must register a separate account using a new EAB credential bound to that template.

Orders

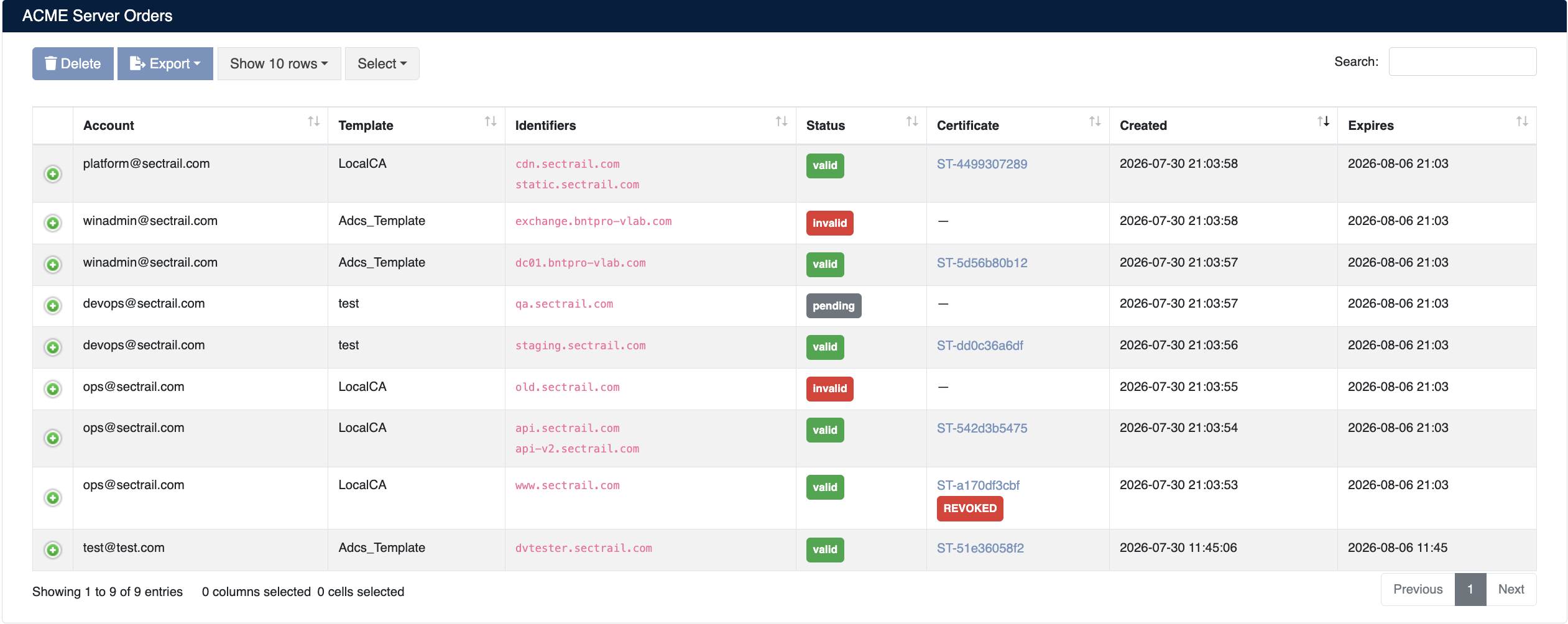

All certificate requests created by clients are tracked under Certificate Authorities (CA) > ACME Server > Orders:

The list screen shows the following information:

Column	Description
Account	The contact address of the ACME account that created the order
Template	The template the certificate was issued with
Identifiers	The domain names covered by the order. An order may contain more than one domain (SAN).
Status	The order status (pending, ready, processing, valid, invalid)
Certificate	A link to the inventory record of the issued certificate. Revoked certificates are marked with a REVOKED label.
Created	The date the order was created
Expires	The validity period of the order (of the ACME order, not the certificate)

Order Statuses

• pending: The order was created, domain validation (challenge) is pending
• ready: Validation succeeded, the certificate request (finalize) is pending
• processing: The certificate is being issued
• valid: The certificate was successfully issued and added to the inventory
• invalid: Validation failed or the order expired

Certificate Inventory

For orders in the valid state, you can click the certificate number in the Certificate column to go to the inventory record, where you can download, monitor, or revoke the certificate.

Client Configuration Examples

In the examples below, replace acme.sectrail.local with your own SecTrail CM address, and the eab_... and HMAC values with your own EAB credential details.

ACME Directory URL:

https://acme.sectrail.local/acme/directory

Certbot

certbot register \
  --server https://acme.sectrail.local/acme/directory \
  --email ops@sectrail.com \
  --eab-kid eab_d4sy8Ub9TMCHw3mF \
  --eab-hmac-key <HMAC_KEY>

certbot certonly --standalone \
  --server https://acme.sectrail.local/acme/directory \
  -d www.sectrail.com -d api.sectrail.com

acme.sh

acme.sh --register-account \
  --server https://acme.sectrail.local/acme/directory \
  -m ops@sectrail.com \
  --eab-kid eab_d4sy8Ub9TMCHw3mF \
  --eab-hmac-key <HMAC_KEY>

acme.sh --issue \
  --server https://acme.sectrail.local/acme/directory \
  -d www.sectrail.com --standalone

Caddy

{
  acme_ca https://acme.sectrail.local/acme/directory
  acme_eab {
    key_id eab_d4sy8Ub9TMCHw3mF
    mac_key <HMAC_KEY>
  }
}
