ITSM Integration

SecTrail CM can connect to different ITSM (IT Service Management) tools — ServiceNow, Jira, Remedy, and Maximo — through a common interface. The integration serves three main purposes:

1. Automatically open tickets for expired/soon-to-expire certificates and assign them to the owner.
2. Read renewal requests opened on the ITSM side and start a fully automated signing workflow in CM.
3. Keep ticket status and renewal outcome synchronized in both directions.

Supported ITSM Tools

Type	Notes
ServiceNow	Works via the Table API; authentication is Basic or OAuth2 (client_credentials)
Jira	Both Cloud (email + API token) and Server/DC (username + password) are supported
Remedy	AR-JWT authentication, form-based integration
Maximo	OSLC REST API, API Key or Basic authentication

1. Creating a Profile

The starting point of the integration is the ITSM Profile. Each profile corresponds to an ITSM tool, a connection configuration, and a set of automation flags.

Menu: Integrations → ITSM → Profiles → Create

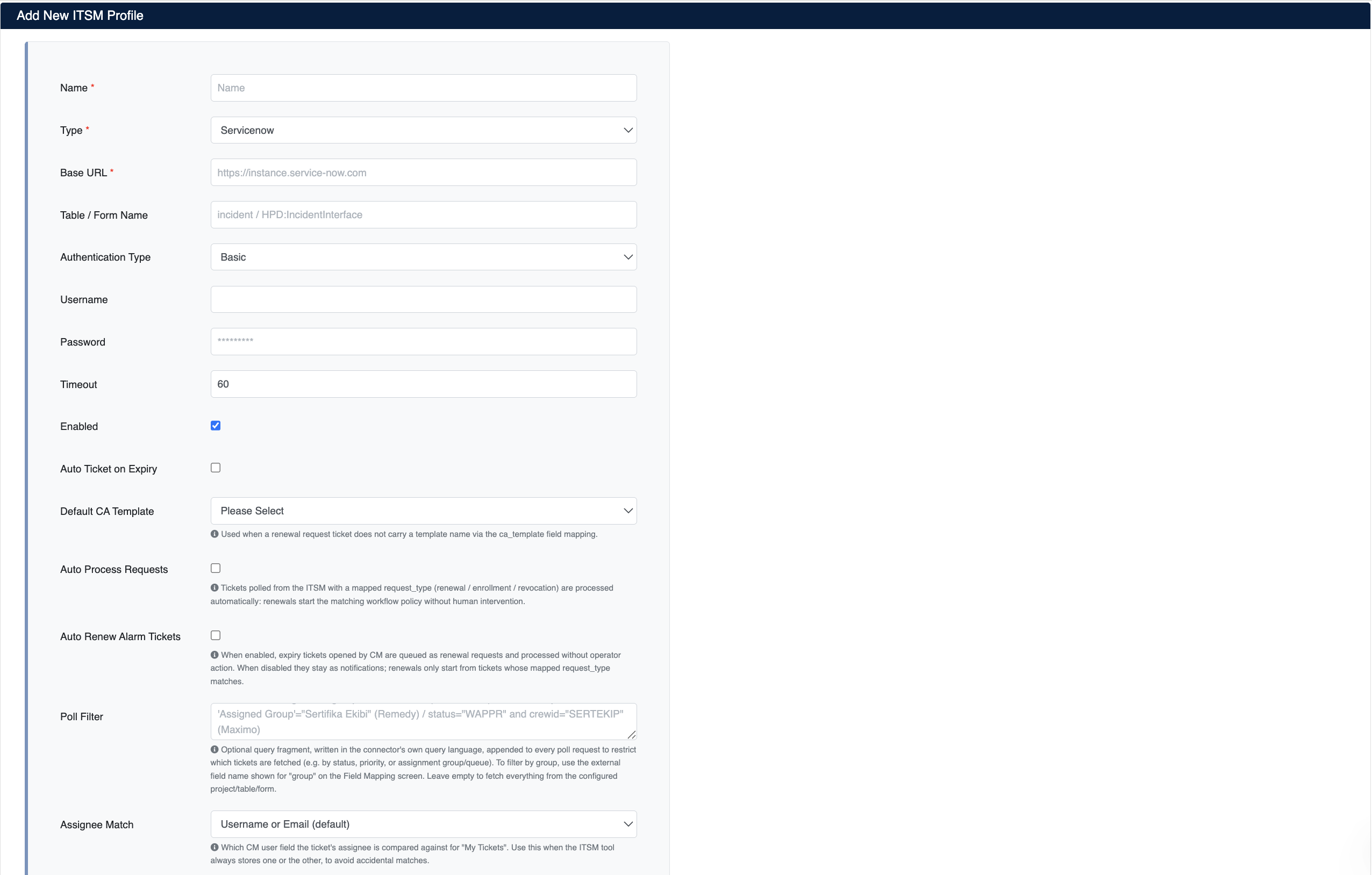

Add New ITSM Profile Form

Connection Fields

Field	Description
Name	A descriptive name for the profile (e.g. jira-tester)
Type	ServiceNow, Remedy, Jira, Maximo
Base URL	The root address of the ITSM tool (e.g. https://instance.service-now.com)
Table / Form Name	Table/form name — the table in ServiceNow, the form in Remedy, the project key in Jira, the object structure in Maximo
Authentication Type	Basic or OAuth2
Username / Password	Basic auth (email + API token for Jira Cloud, username + password for Server/DC)
Client ID / Client Secret / Token URL	Only shown when OAuth2 is selected (client_credentials grant)
Timeout	HTTP request timeout, in seconds (5-600, default 60)
Enabled	Whether the profile is active — no job uses it while disabled

Password/Secret Fields

Password/secret fields always appear empty in the form. Leaving them empty while editing preserves the existing value — they only change if you fill them in.

Automation Flags

Field	Effect
Auto Ticket on Expiry	Lets the general alarm engine (the default scan for expiring certificates) automatically open tickets on this profile
Auto Process Requests	Lets CM automatically process tickets created (polled) on the ITSM side
Auto Renew Alarm Tickets	Lets CM's own alarm tickets automatically be converted into a renewal request
Default CA Template	The default CA template used in the automated renewal workflow (kicks in when the ticket has no template name)

Test Connection: Before saving, performs a real connection test using the values currently in the form (not yet written to the database). Empty secret fields fall back to the existing database value if the profile is already saved.

Poll Scope and Assignment Settings

Field	Effect
Poll Filter	A free-text filter, written in the ITSM tool's own query language, that restricts the scope of polled tickets (see Restricting Poll Scope)
Assignee Match	Which field the assignment comparison uses in the "My Tickets" view: username, email, or both (see Assignee Matching)

Profile List

Saved profiles are listed under Integrations → ITSM → Profiles:

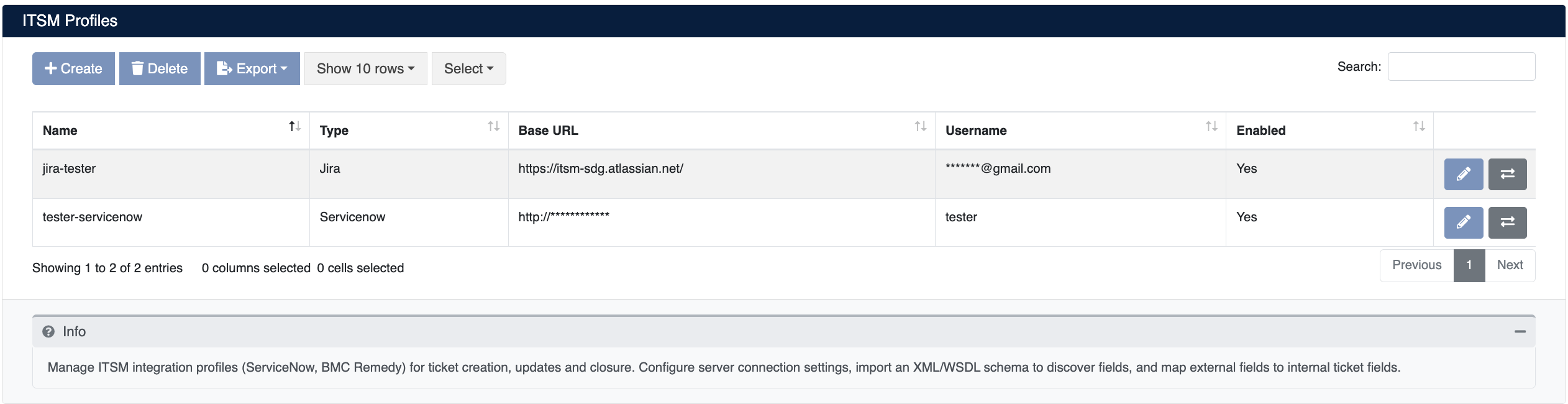

ITSM Profiles List

Table columns: Name, Type, Base URL, Username, Enabled. From the actions column you can edit a profile (✏️), go to its field mapping screen (🔁), or delete it (🗑️).

2. Field Mapping

Every ITSM tool has its own field names and status codes. CM operates over a fixed set of internal fields and translates them to the external system through a profile-specific mapping table.

Menu: Profile list → Mapping

Internal Fields

number, subject, description, status, priority, assignee,
group, ci, resolution, request_type, certificate, ca_template

Schema Discovery (Optional)

If you don't know the external system's field names, there are two ways to fill the External Field dropdown on the mapping screen:

• Upload or provide a URL to XML/WSDL (e.g. https://instance.service-now.com/incident.do?WSDL), or
• Leave it empty — the system fetches the field list directly from the selected ITSM tool:

Tool	Automatic discovery source
Jira	All field IDs via the fields list API
ServiceNow	The table's WSDL
Remedy	The form field list API
Maximo	The object structure JSON schema

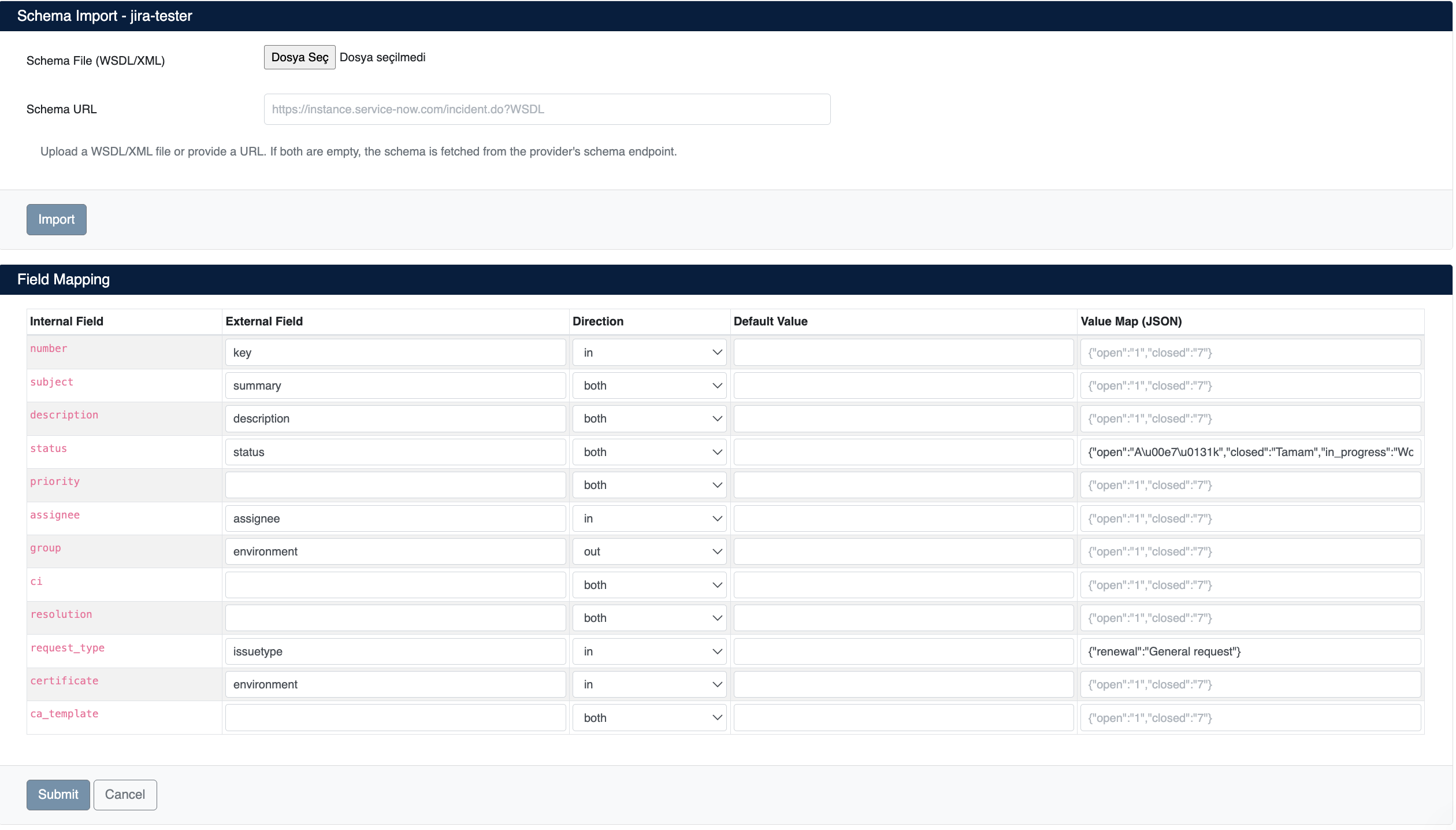

Schema Discovery / Import Interface

The Four Settings on Each Row

Setting	Meaning
External Field	The corresponding field name on the external system
Direction	out (CM→ITSM only), in (ITSM→CM only), both (both directions)
Default Value	A fixed value sent from CM when the internal field is empty
Value Map (JSON)	A JSON translation dictionary, e.g. {"open":"1","closed":"7"}

How Direction Works

• Creating/updating a ticket (CM → ITSM): only rows with Direction set to out or both are sent out; a row marked in is never sent out. If the internal field is empty, Default Value is used; if that's also empty, the row is skipped.
• Polling (ITSM → CM): only rows with Direction set to in or both are read; a row marked out is never read from poll results, even if present it's ignored.

For example, the group field carrying the certificate owner on auto-opened tickets is usually marked out: the value of that same field coming back from ITSM during polling is not read back into CM. This is intentional — group is a value CM determines itself, and it's expected to not change CM's view even if it changes on the ITSM side.

Transform Works in Both Directions

A single Transform dictionary is used both outbound and inbound, but is searched from different sides:

• Outbound: the internal value is looked up as a key in the dictionary; if found, the corresponding value is sent out. E.g. with {"closed":"7"}, CM's status being closed goes out to ITSM as 7.
• Inbound: the external value is looked up as a value in the dictionary; if found, the corresponding key is written to the internal field. In the same example, if ITSM returns 7, CM interprets it as closed.

So a single dictionary is enough — CM always represents the key side, ITSM always represents the value side.

3. Alarm Integration — Automatic Ticket Creation

CM's various alarm engines can automatically open a ticket by selecting an ITSM profile on their own rule screens.

Alarm type	Profile source	Becomes a renewal request?
Default expiry alarm	All profiles with Auto Ticket on Expiry enabled	Depends on the profile's Auto Renew Alarm Tickets flag
Owner/regex/IP rules	The single profile selected in the rule	Depends on the profile's Auto Renew Alarm Tickets flag
TLS version alarm	The profile selected in the TLS rule	No — always a notification (doesn't resolve the TLS issue by renewing)
Ownership rules	The profile selected in alarm customization	Depends on the profile's Auto Renew Alarm Tickets flag

Duplicate Ticket Prevention

If a ticket is already open (not closed) for the same certificate/target, a new one is not opened.

Two Ticket Types

• Renewable: the ticket is marked as a renewal request → triggers the automated renewal workflow in the poll cycle.
• Notification: the ticket is closed immediately (not processed) — purely informational.

4. Poll and Processing Cycle

The system checks active profiles every 30 minutes:

1. The current ticket list is fetched from the ITSM tool and written/updated in the local ticket cache.

2. For profiles with Auto Process Requests enabled, tickets that are not yet processed and are marked as renewal requests are processed in order:

   Request type	Behavior
   Renewal	Fully automatic — triggers an existing workflow if one exists, otherwise builds one from scratch
   Enrollment / Revocation	Requires manual review — CM does not start automated processing
   Unknown type	Marked as notification, the external system is not touched

   Every processed ticket is updated on the external system to at least "in progress" status (best-effort; failures are only logged).

Restricting Poll Scope

By default, each profile fetches all tickets in the defined project/table/form. You can narrow this scope by adding an extra condition, written in the ITSM tool's own query language, to the profile's Poll Filter field:

Tool	Query language	Example
Jira	JQL	status = "Open" AND priority = "High"
ServiceNow	sysparm_query fragment	active=true^priority=1
Remedy	Qualifier	'Status'="Open"
Maximo	OSLC oslc.where	status="WAPPR"

If the filter is empty, behavior is unchanged (all records are fetched).

Fetching Tickets Assigned to a Specific Group/Queue

Uses the same mechanism — using the external field name that the group internal field maps to on the Field Mapping screen:

Tool	Example (group = "Certificate Team")
Jira	"Assignment Group" = "Certificate Team"
ServiceNow	assignment_group=Certificate Team
Remedy	'Assigned Group'="Certificate Team"
Maximo	crewid="CERTTEAM"

Multiple conditions (e.g. status + group) can be combined in a single line using the tool's own logical operator (Jira AND, ServiceNow ^, Remedy AND, Maximo and).

ITSM_ENABLED Setting

If ITSM integration is disabled on the server side (ITSM_ENABLED=false), the scheduled poll cycle never runs. The manual Refresh button on the ticket screen works independently of this.

5. Automated Renewal Workflow

While processing a renewal ticket, CM builds and runs a complete signing flow itself.

Building the Workflow

1. Certificate resolution: the certificate reference on the ticket (fingerprint or CN) is used to reach the corresponding discovery record. If not found, it errors out.
2. Template resolution: first the ticket's template field (if present), otherwise the profile's Default CA Template. If neither is present, it errors out.
3. Workflow setup: a certificate-based automation type is set up — no approval step, no human intervention required, and signing is triggered immediately on first run.
4. The workflow is queued to run immediately.

Result Handling

Status	Action
Completed + a new certificate was issued	The external ticket is closed with the new certificate's name and validity date
Failed	An error description is written to the external ticket, and the ticket stays open (for operator intervention)

One-Time Run

Workflows spawned from an ITSM ticket are one-time renewal requests: once completed, CM automatically disables the workflow, so signing isn't attempted repeatedly for the same request.

6. Ticket Tracking (UI)

Menu: Integrations → ITSM → Tickets

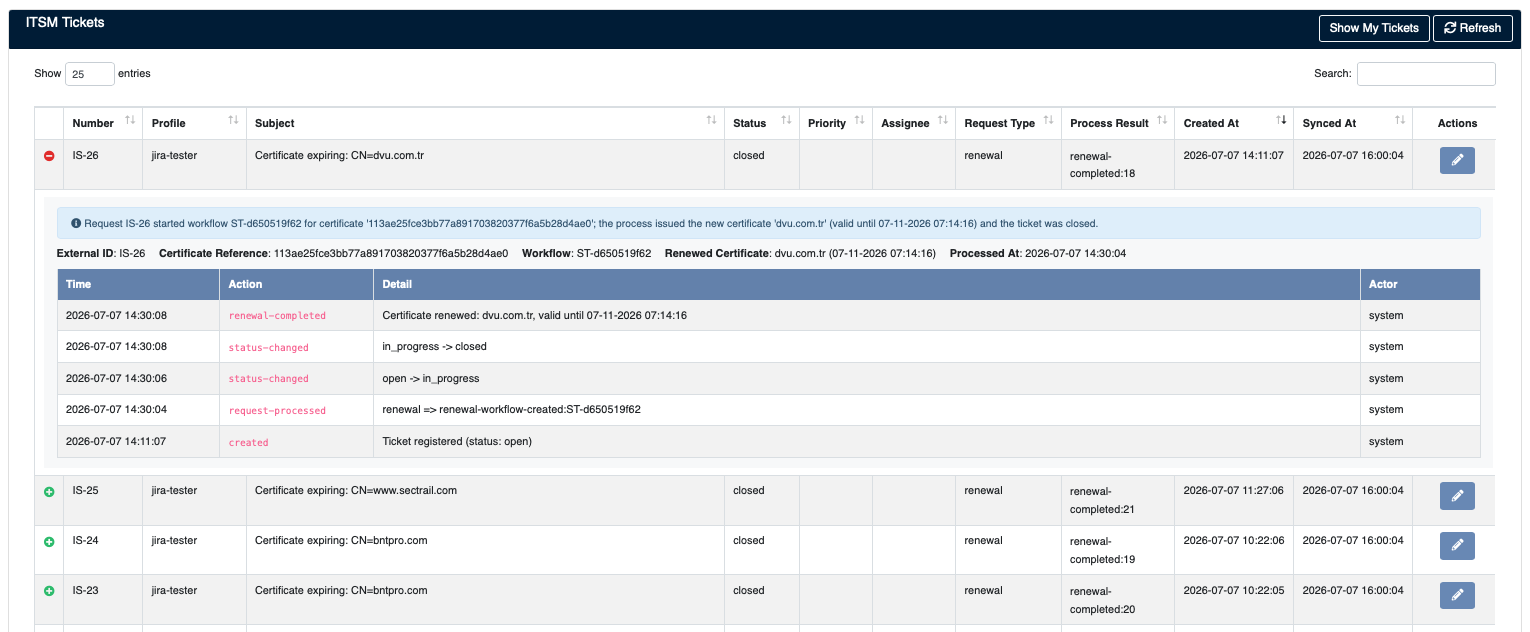

ITSM Tickets List and Detail Panel

• The default view lists all tickets; use Show My Tickets to switch to only tickets assigned to the logged-in user.
• Table columns: Number, Profile, Subject, Status, Priority, Assignee, Request Type, Process Result, Created At, Synced At, Actions.
• Detail panel (via row expansion): a summary sentence if available (e.g. "Renewed: valid until X" / "Renewal failed" / "Renewal process started" / "Pending"), the certificate reference, linked workflow ID, renewed certificate info, processing time, and the full history (actions like created, status-changed, request-processed, renewal-completed).
• Refresh button: manually polls all active profiles immediately (without waiting for the schedule).
• Create Ticket: a manual ticket creation form from within CM.

Assignee Matching

"My Tickets" (the default view) compares the ticket against the logged-in user's username or email (case and leading/trailing whitespace are ignored). This is a comparison against the raw ITSM value written to the ticket's assignee field — CM has no separate "assign this ticket to this user" mechanism; the ITSM tool itself is the sole source of assignment.

Some ITSM tools always store a username in the assignee field, others always store an email. The profile's Assignee Match setting narrows the comparison to only the correct field, preventing accidental matches:

Value	Behavior
Username or Email (default)	Ticket shown if either matches
Username Only	Compared against username only
Email Only	Compared against email only

Not to Be Confused with Group

This setting does not affect the certificate owner (group) field on auto-opened alarm tickets — group and assignee are independent concepts: group is filled based on the certificate owner when the ticket is opened, while the assignee is the person set on the ITSM side (or during manual creation).

End-to-End Example Flow

1. An alarm rule (ITSM profile selected, configured to open a renewal ticket) catches a certificate nearing expiry.
2. A ticket is opened on ITSM with the owner/group information, marked as a renewal request.
3. The next poll cycle reads the ticket and processes it: if no workflow exists, it builds a new automation workflow.
4. The workflow generates a CSR from the discovered certificate, signs it with the defined CA template, and writes the result to inventory.
5. Once the workflow completes, the ticket is closed with the new certificate's info, and the workflow is disabled since it's one-time.
6. All steps are visible in the history on the ticket's detail panel.
